Passenger Compartment Screen Air Deflector Bag Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

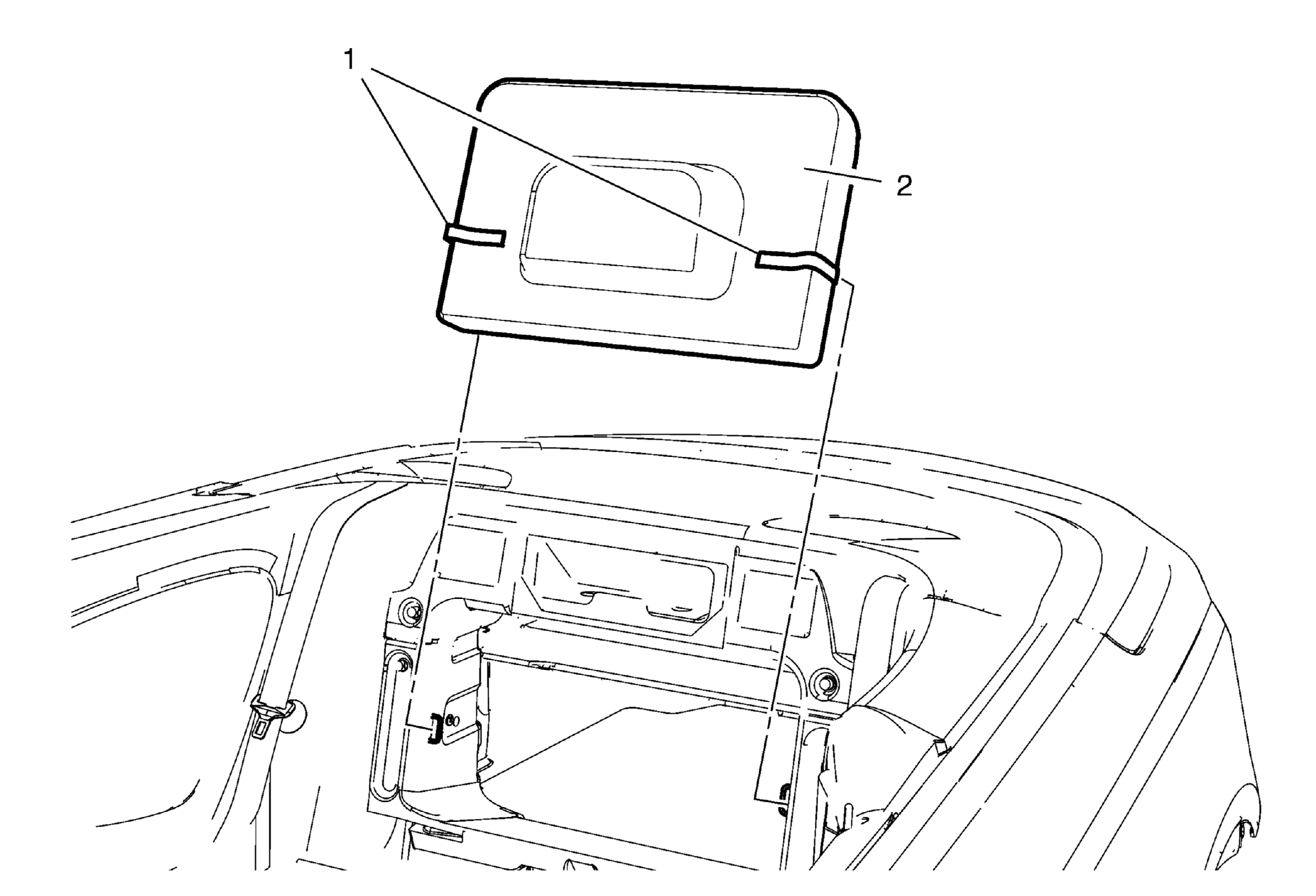

GM2966413
Callout Component Name
Preliminary Procedures
Fold down the rear seats to gain access to the passenger compartment screen air deflector bag.
1 Passenger Compartment Screen Air Deflector Bag Velcro (Qty: 2)
Procedures
Open the velcro and pull the velcro through the brackets.
2 Passenger Compartment Screen Air Deflector Bag
