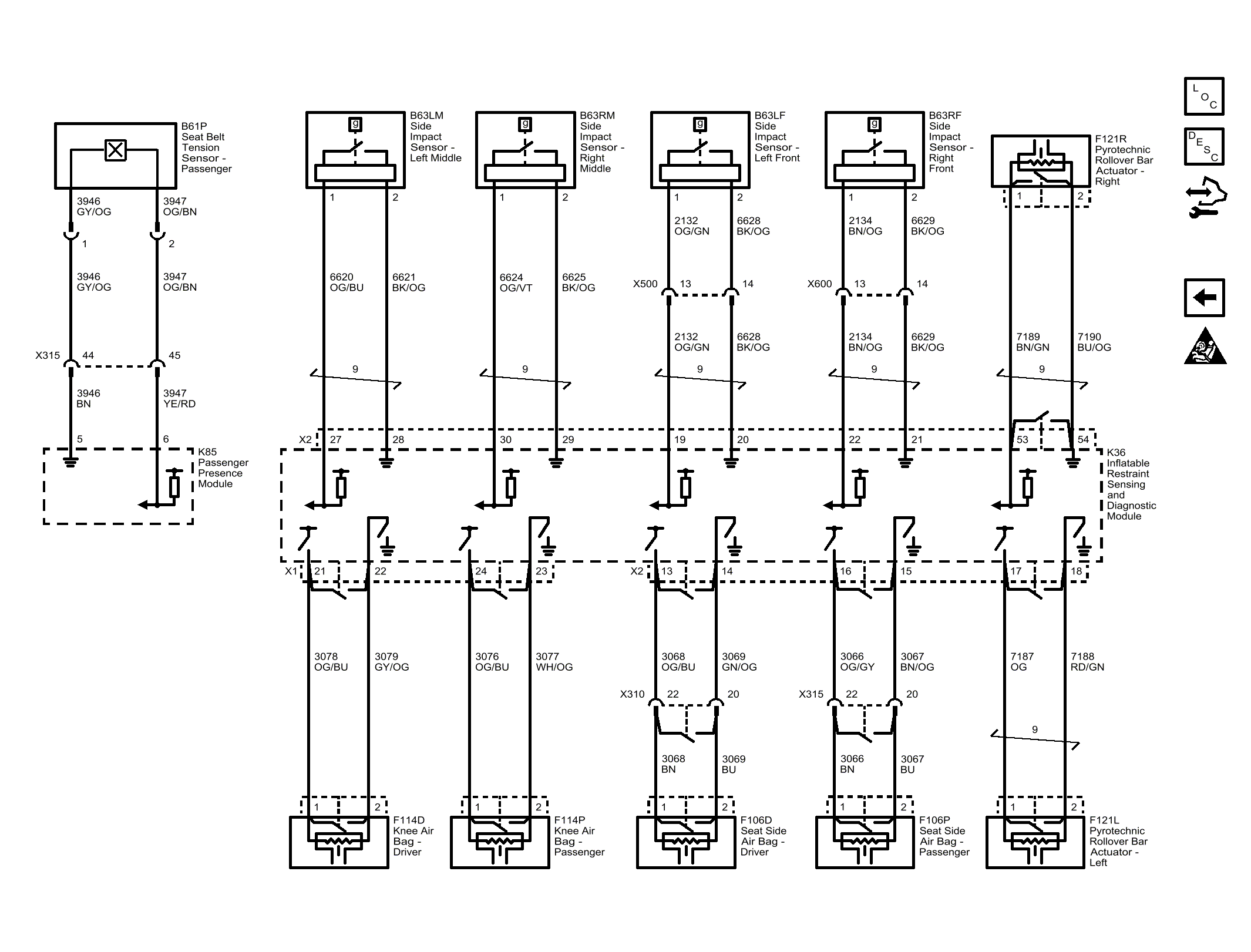

Side Impact Sensors, Knee and Seat Air Bags, Pyrotechnic Rollover Bar Actuators and Passenger Disable Switch

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
GM4890497
