Draining Procedure
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
When the transmission is at operating temperatures, take necessary precautions when removing the check/fill plug, to avoid being burned by draining fluid.
WARNING:
The transmission fluid is hot. Caution must be taken to prevent personal injury when the transmission fluid drains from the transmission.
NOTE:
Before the removal of any plugs, clean the surrounding area of this plug.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- If equipped, remove the left front compartment splash shield. Refer to Front Compartment Splash Shield Replacement .
- If equipped, remove the engine shield. Refer to Engine Shield Replacement .
- If equipped, remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .

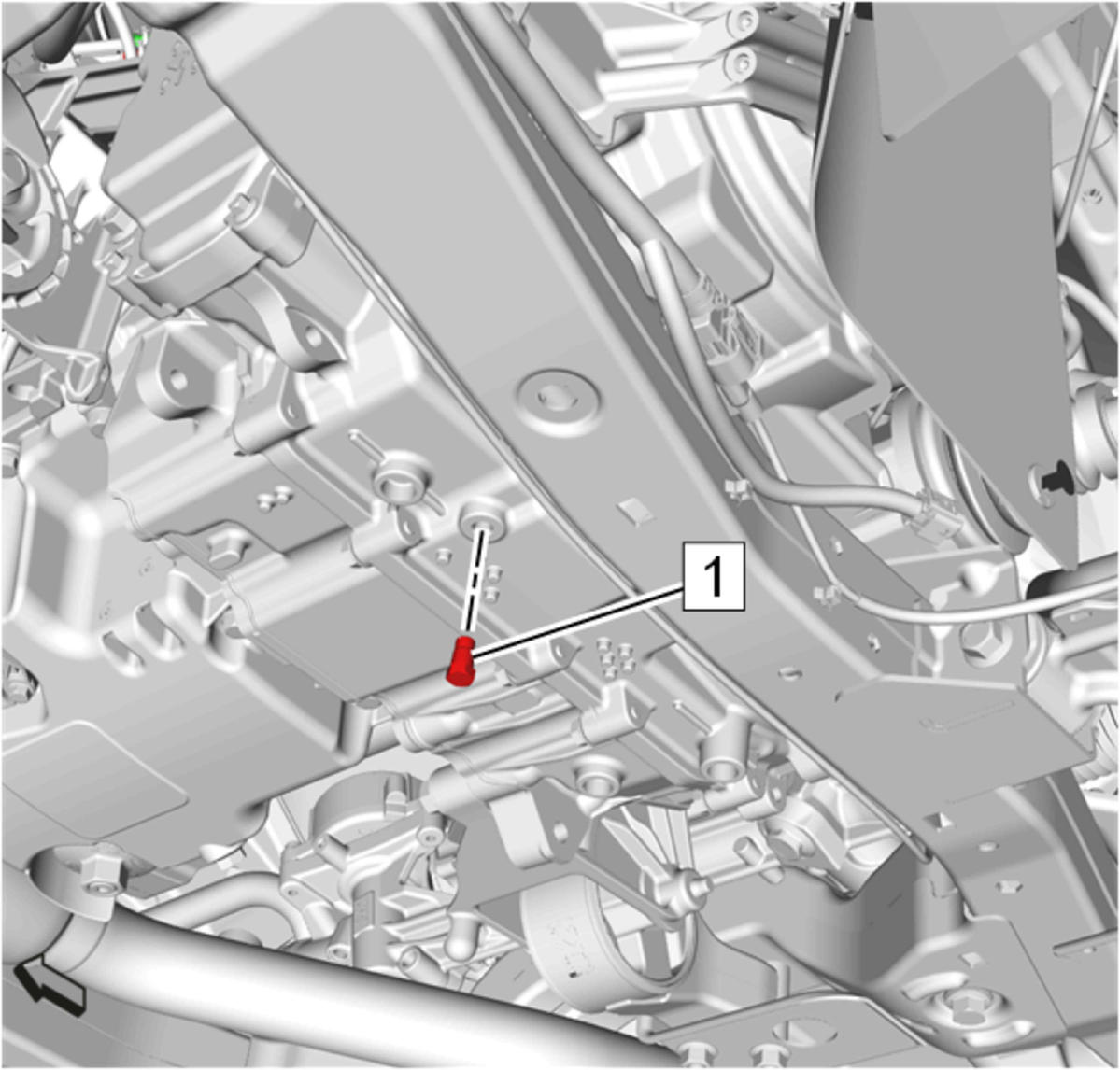

- Remove the fluid drain plug (1).
- Drain the transmission fluid into a suitable container.
- Let the transmission fluid run out for 10 minutes and check the transmission fluid amount. If necessary, fill up the drained amount to the proper level with the correct fluid. Refer to Transmission General Specifications (6T40/6T45/6T50) , and Approximate Fluid Capacities (6T40/45/50) .
- Check the collected transmission oil for burnt oil exhalation, metal chips and other foreign bodies. If this the fact, search for the reason caused by the transmission.
- Install the fluid drain plug (1) and tighten to 12 N.m (106 lb in).
CAUTION:
Refer to Fastener Caution .
