Rear Bumper Harness Routing - Back of the Rear Fascia

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

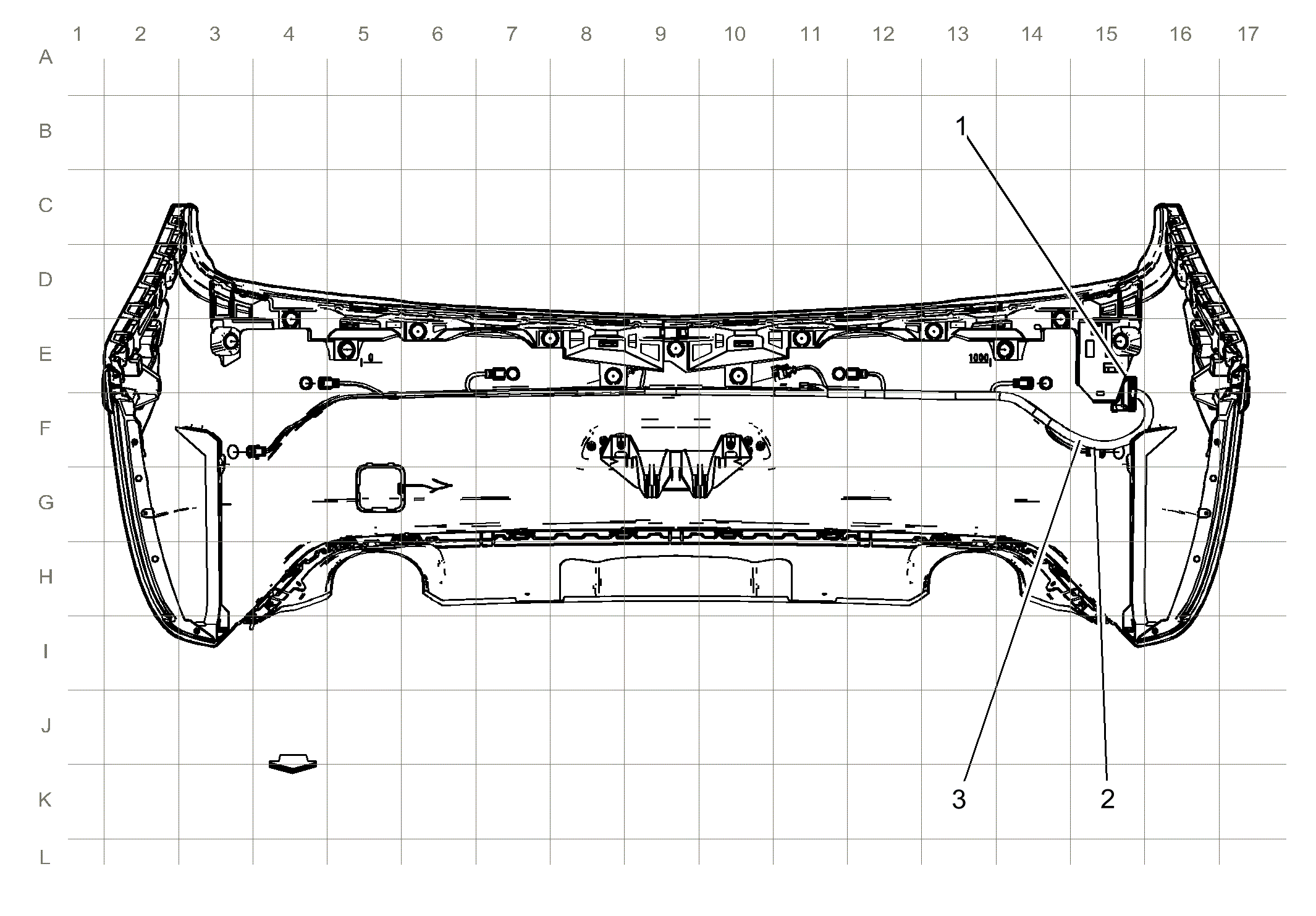

GM2918429Courtesy of GENERAL MOTORS COMPANY
Items
1. X402 Rear Bumper Harness to Rear Body Harness (UD7) X402 Rear Fascia Harness to Rear Body Harness
2. J430 Folding top Harness
3. J433 Folding top Harness
