Front Bumper Harness Routing - Back of the Front Fascia

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

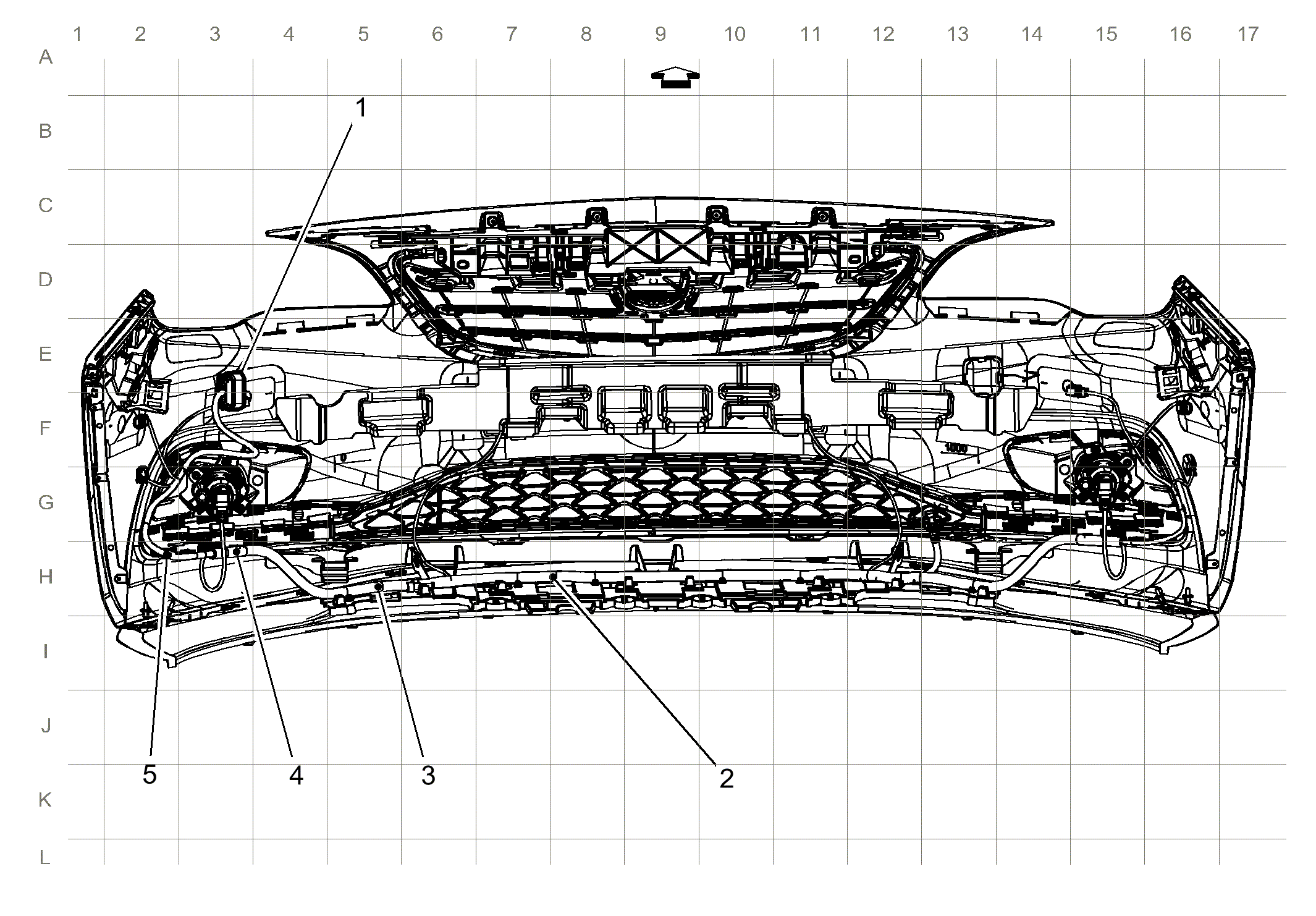

GM4243041Courtesy of GENERAL MOTORS COMPANY
Items
1. X118 Front Bumper Harness to Forward Lamp Harness X118 Front Fascia Harness to Forward Lamp Harness
2. J111 Front Bumper Harness
3. J110 Bumper Harness (UDP)
4. J132 Body Harness
5. J106 Bumper Harness
