Engine Harness Routing - Left Rear

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

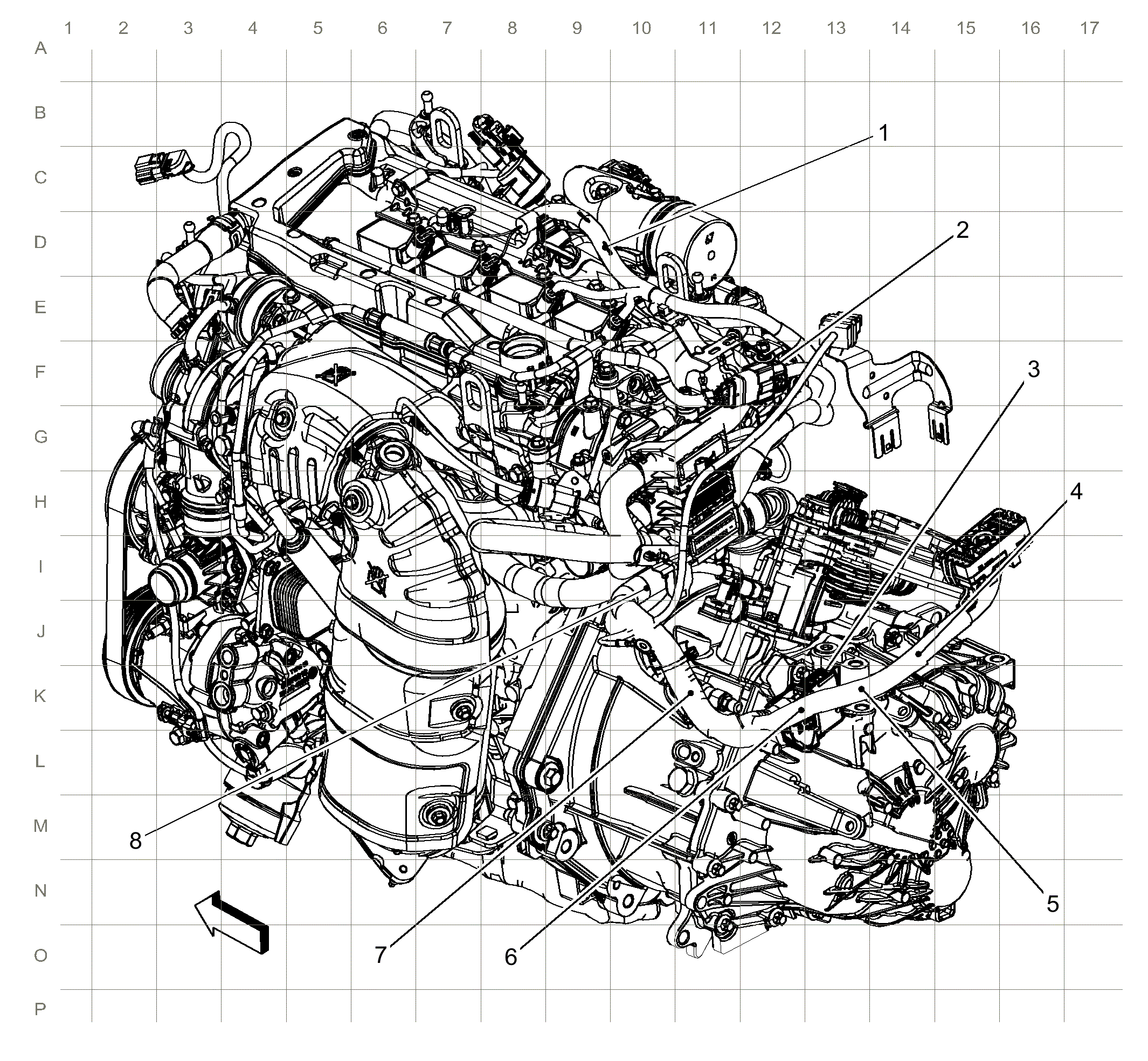

GM4243063Courtesy of GENERAL MOTORS COMPANY
Items
1. J121 Engine Harness
2. X160 Engine Harness to Fuel Injector Extension Harness X160 Engine Harness to Fuel Injector Harness ()
3. X115 Body Harness to Engine Harness X115 Body Harness to Engine Harness
4. J101 Engine Harness
5. J109 Engine Harness
6. J104 Engine Harness
7. J120 Engine Harness
8. J114 Engine Harness
