Body Harness Routing - Right Side of the Luggage Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

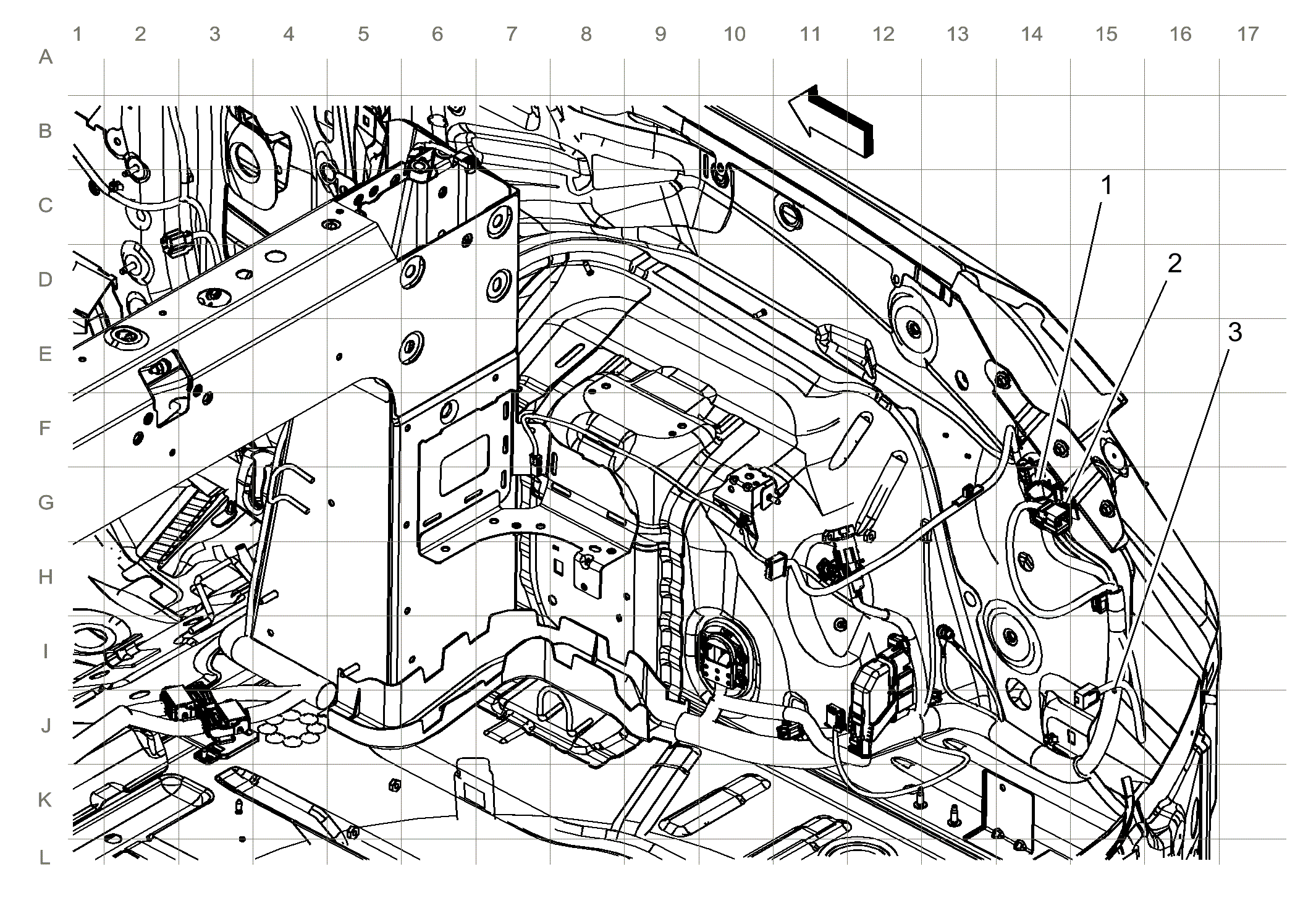

GM4243917Courtesy of GENERAL MOTORS COMPANY
Items
1. X905 Rear Compartment Lid Extension Harness to Body Harness X905 Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness ()
2. X420 Body Harness to Right Auxiliary Tail Lamp Harness X420 Body Harness to Right Tail Lamp Harness
3. J320 Body Harness
