Body Harness Routing - Right Rear of the Passenger Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

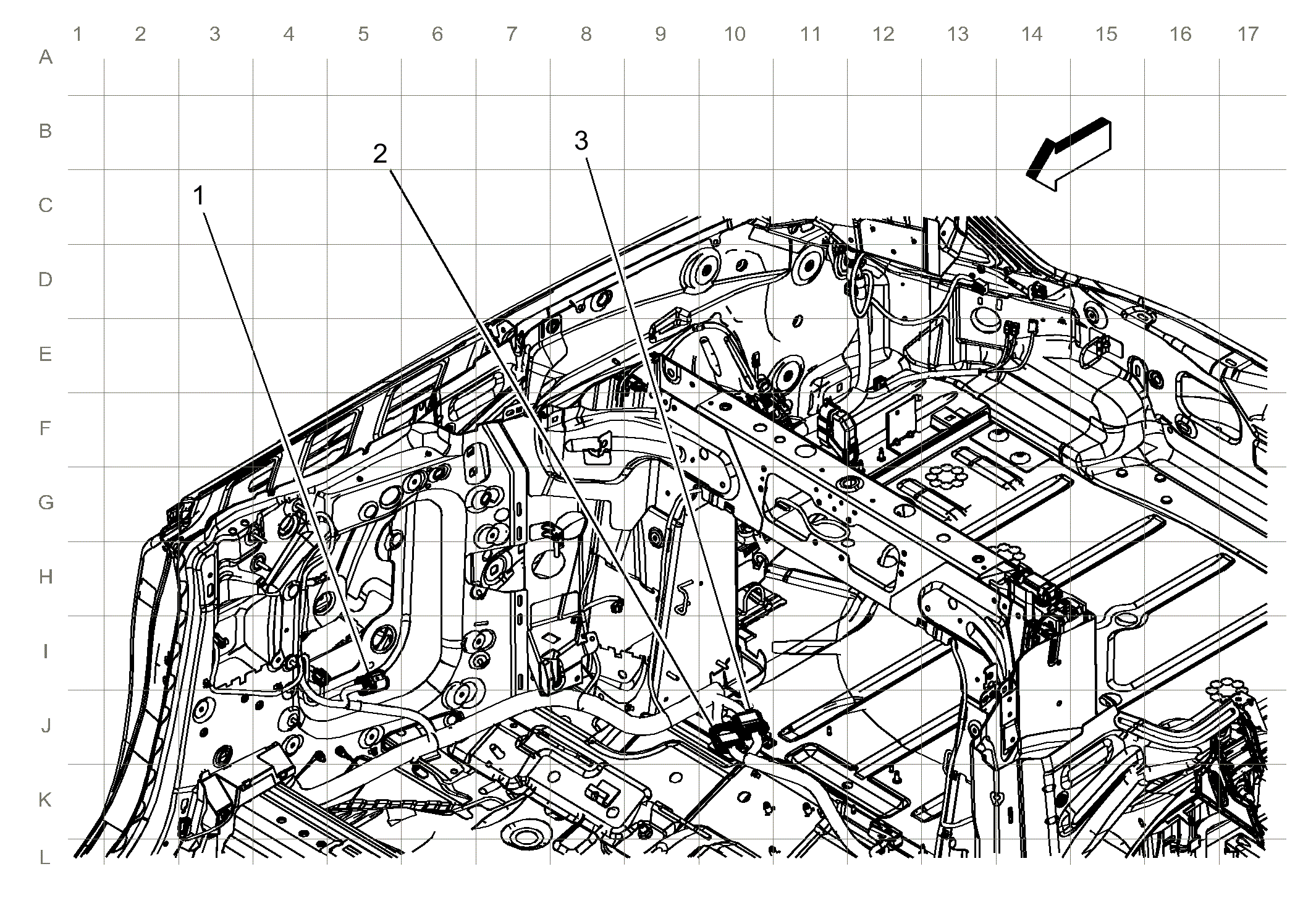

GM4243921Courtesy of GENERAL MOTORS COMPANY
Items
1. X380 Body Harness to Right Window Motor Extension Harness X380 Body Extension Harness to Body Harness
2. X330 Body Harness to Body Harness X330 Body Harness to Body Harness
3. X332 Body Harness to Body Harness X332 Body Harness to Body Harness
