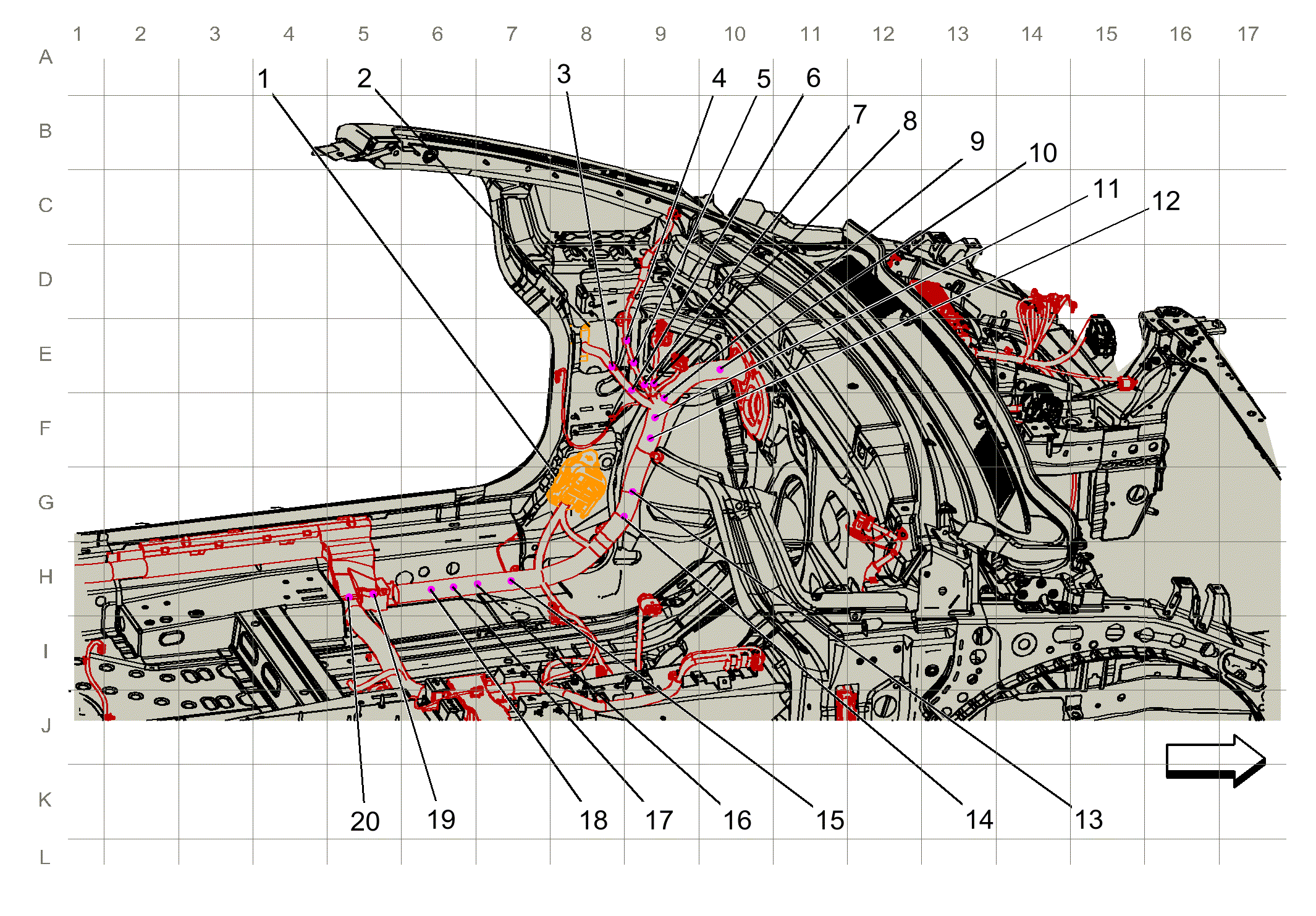

Body Harness Routing - Left Side of the Passenger Compartment
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness |
| 2. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness () |
| 3. J316 Body Harness |
| 4. J303 Body Harness |
| 5. J126 Body Harness |
| 6. J117 Body Harness |
| 7. J125 Body Harness |
| 8. J211 Body Harness |
| 9. J250 Body Harness |
| 10. J116 Body Harness |
| 11. J150 Body Harness |
| 12. J151 Body Harness |
| 13. J330 Body Harness |
| 14. J502 Driver Door Harness |
| 15. J115 Body Harness |
| 16. J315 Body Harness |
| 17. J118 Body Harness |
| 18. J119 Body Harness |
| 19. J305 Body Harness |
| 20. J311 Body Harness |
