Body Harness Routing - Left Rear of the Passenger Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

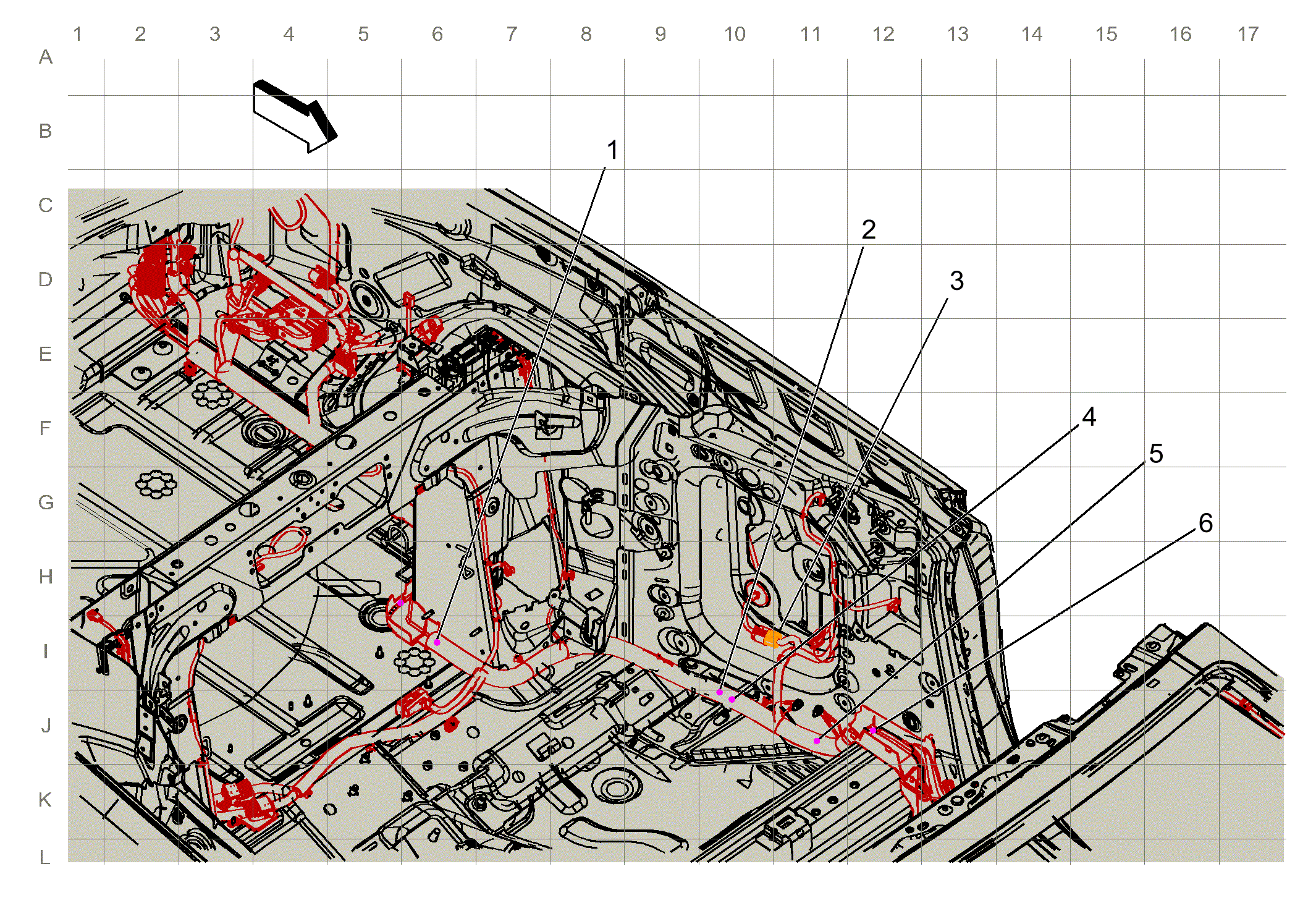

GM4243909Courtesy of GENERAL MOTORS COMPANY
Items
1. J317 Body Harness
2. J328 Body Harness
3. X370 Left Window Motor Extension Harness to Body Harness X370 Body Extension Harness to Body Harness
4. J350 Seat Harness
5. J308 Body Harness
6. J113 Body Harness
