Body Harness Routing - Folding Top A Pillar and Headliner

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

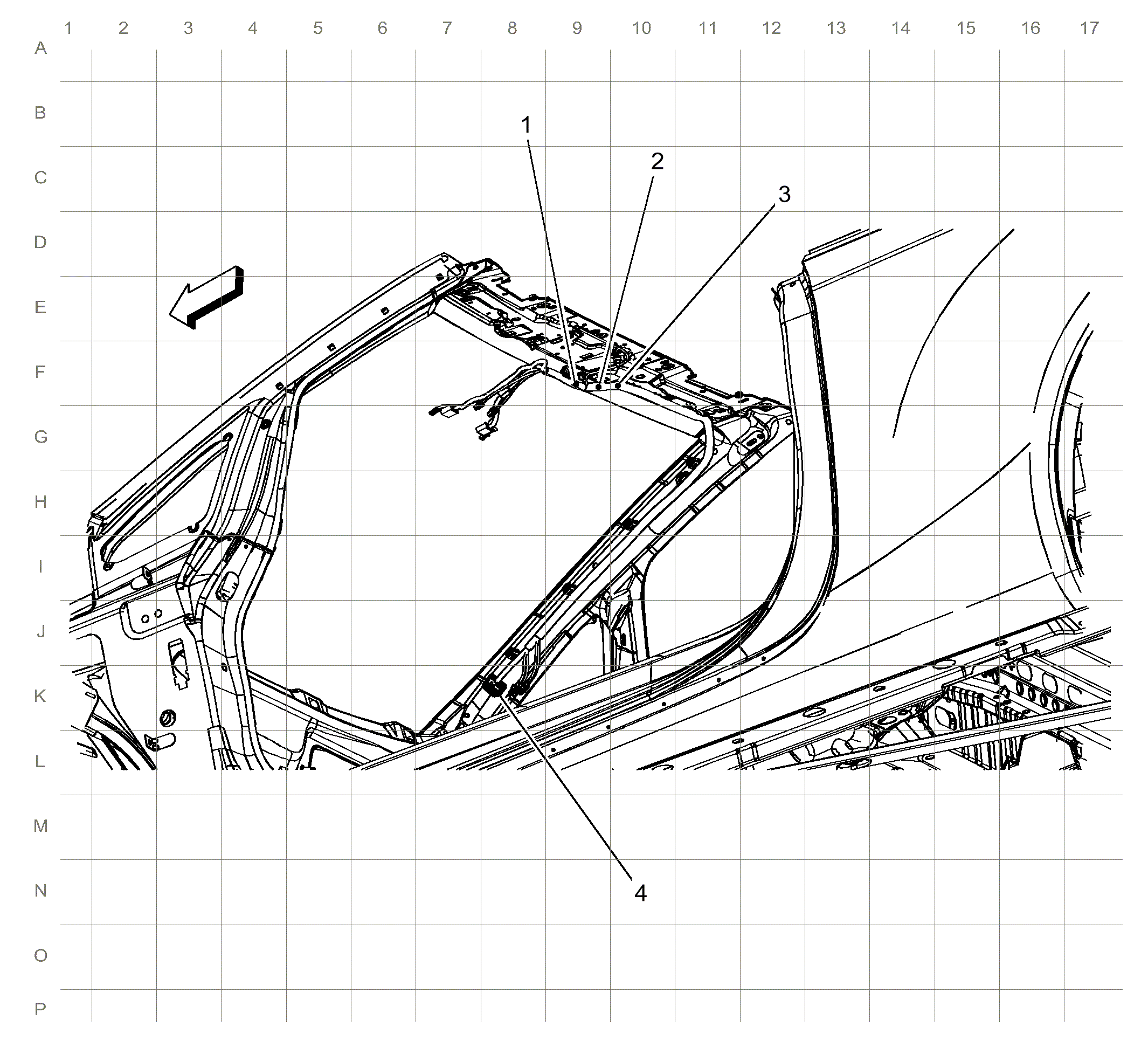

GM4243031Courtesy of GENERAL MOTORS COMPANY
Items
1. J336 Headliner Harness
2. J338 Headliner Harness
3. J313 Body Harness
4. X210 Body Harness to Inside Rearview Mirror Harness X210 ISRVM Harness to Body Harness
