Body Harness Routing - Convertible Top Headliner

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

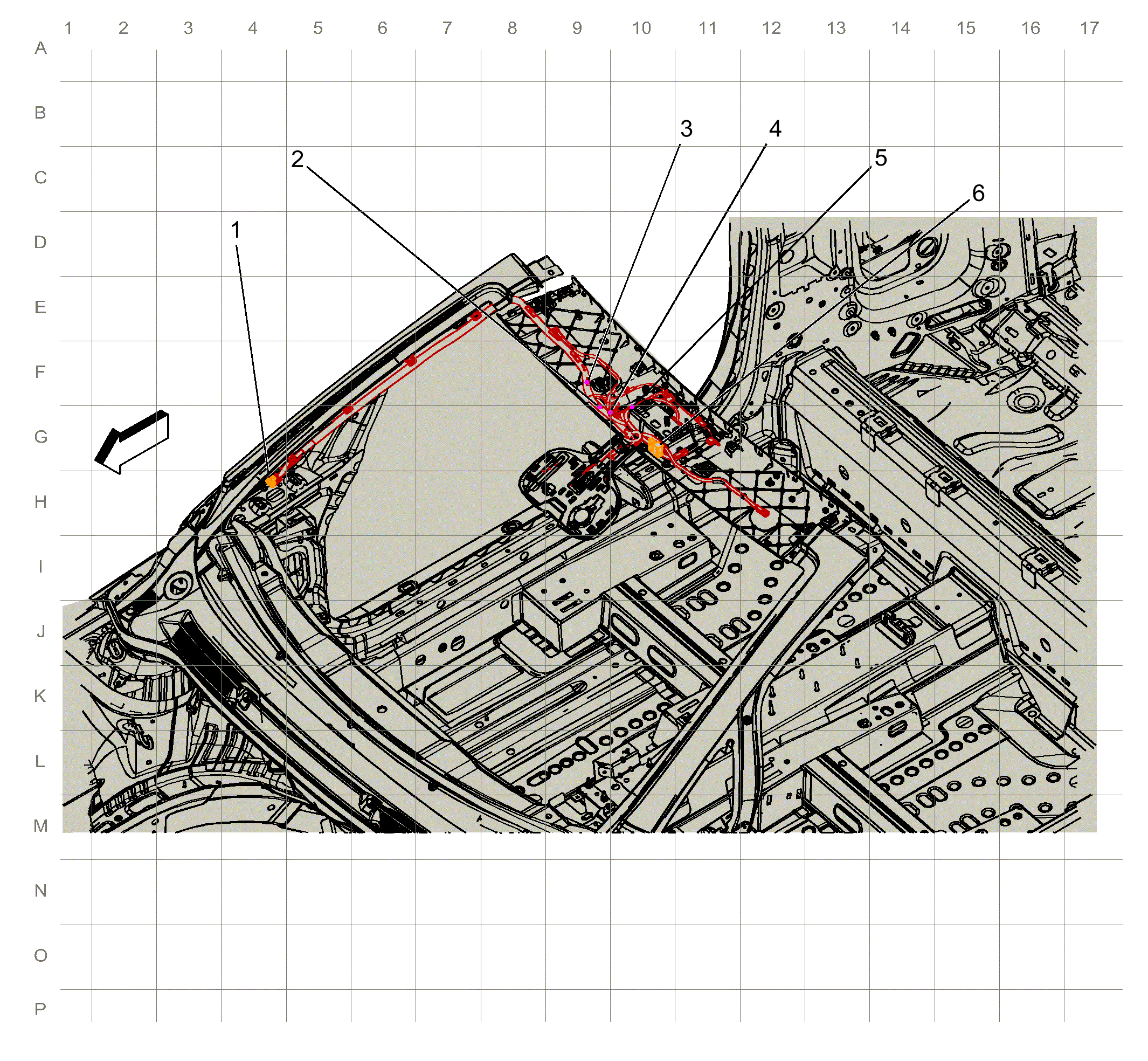

GM4243026Courtesy of GENERAL MOTORS COMPANY
Items
1. X210 Body Harness to Inside Rearview Mirror Harness X210 ISRVM Harness to Body Harness
2. J336 Headliner Harness
3. J338 Headliner Harness
4. J303 Body Harness
5. J331 Dome Lamp Harness
6. X211 Body Harness to Headliner Harness X211 Body Harness to Headliner Harness
