Body Front Harness Routing - Left Side of the Engine Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

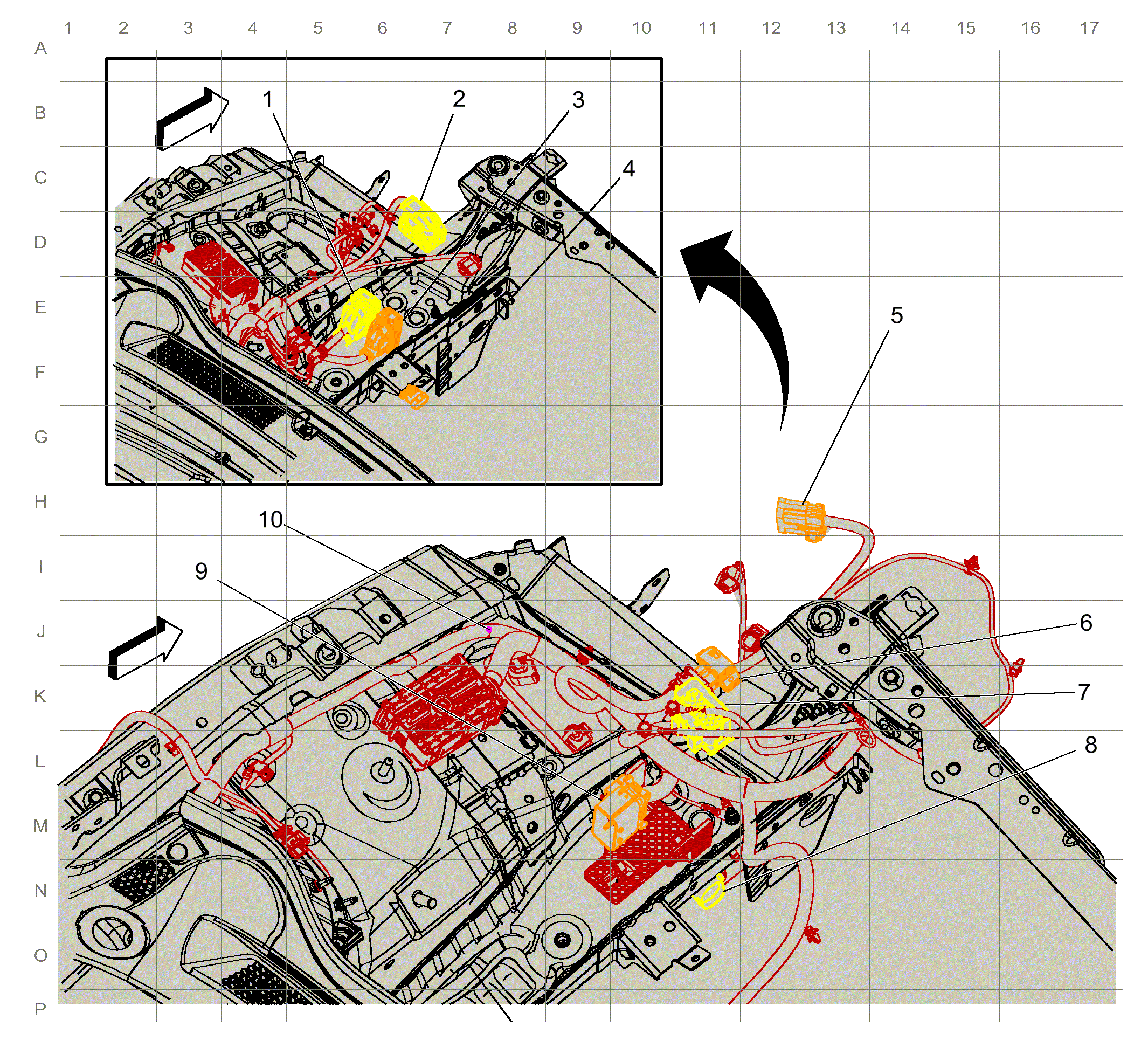

GM4243904Courtesy of GENERAL MOTORS COMPANY
Items
1. X100 Body Harness to Forward Lamp Harness X100 Body Harness to Forward Lamp Harness ()
2. X121 Body Harness to Forward Lamp Harness X121 Body Harness to Forward Lamp Harness
3. X115 Body Harness to Engine Harness X115 Body Harness to Engine Harness
4. X114 Body Harness to Power Steering Control Module Harness X114 Power Steering Control Module Harness to Body Harness
5. X118 Front Bumper Harness to Forward Lamp Harness X118 Front Fascia Harness to Forward Lamp Harness
6. X110 Forward Lamp Harness to Left Headlamp Harness X110 Forward Lamp Harness to Left Headlamp Harness
7. X121 Body Harness to Forward Lamp Harness X121 Body Harness to Forward Lamp Harness
8. X101 Cooling Fan Harness to Forward Lamp Harness X101 Cooling Fan Harness to Forward Lamp Harness
9. X100 Body Harness to Forward Lamp Harness X100 Body Harness to Forward Lamp Harness ()
10. J132 Body Harness
