Body Front Harness Routing - Front of the Engine Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

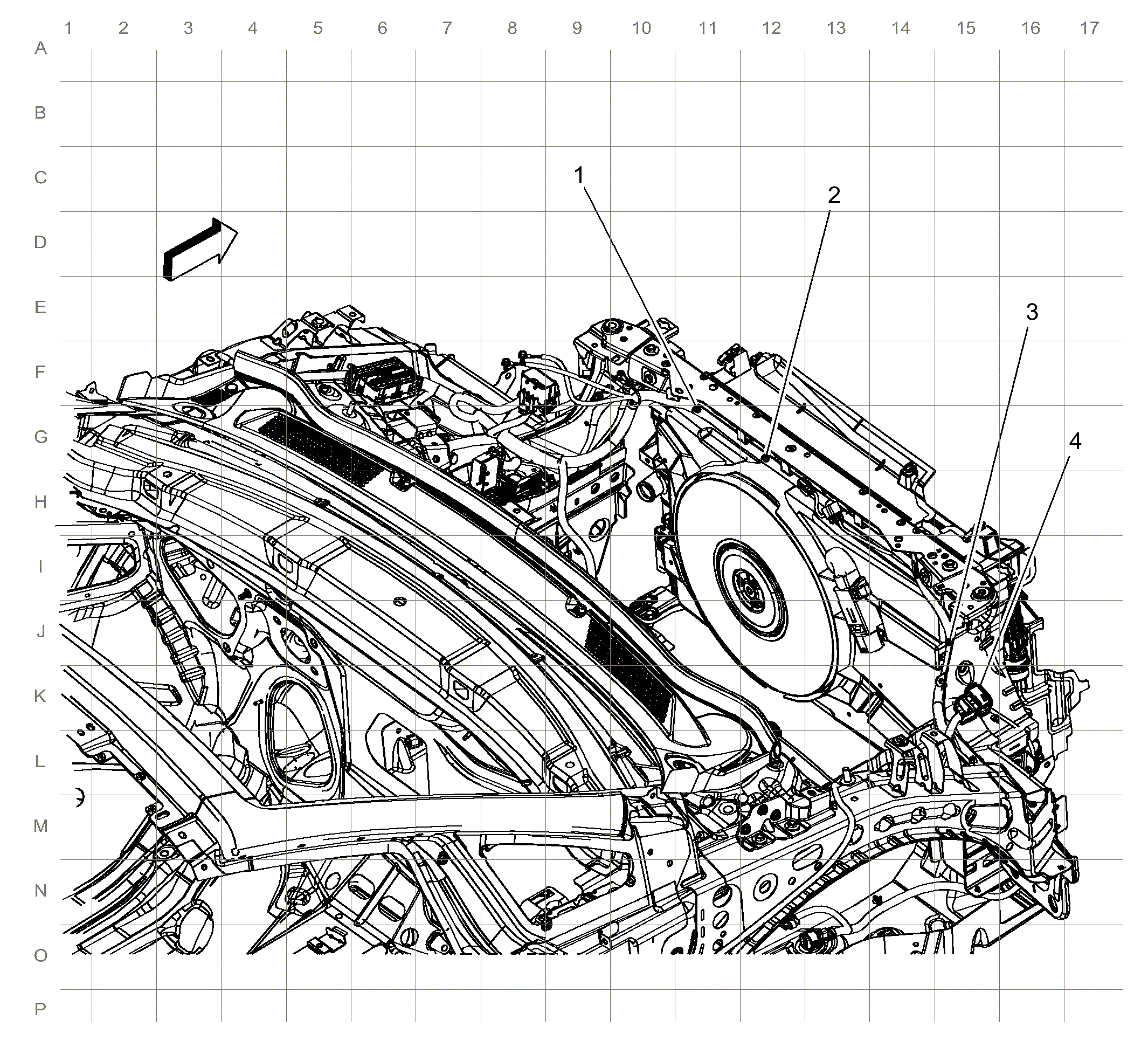

GM4243024Courtesy of GENERAL MOTORS COMPANY
Items
1. J130 Headlamp Harness
2. J129 Headlamp Harness
3. J131 Headlamp Harness
4. X120 Forward Lamp Harness to Right Headlamp Harness X120 Forward Lamp Harness to Right Headlamp Harness
