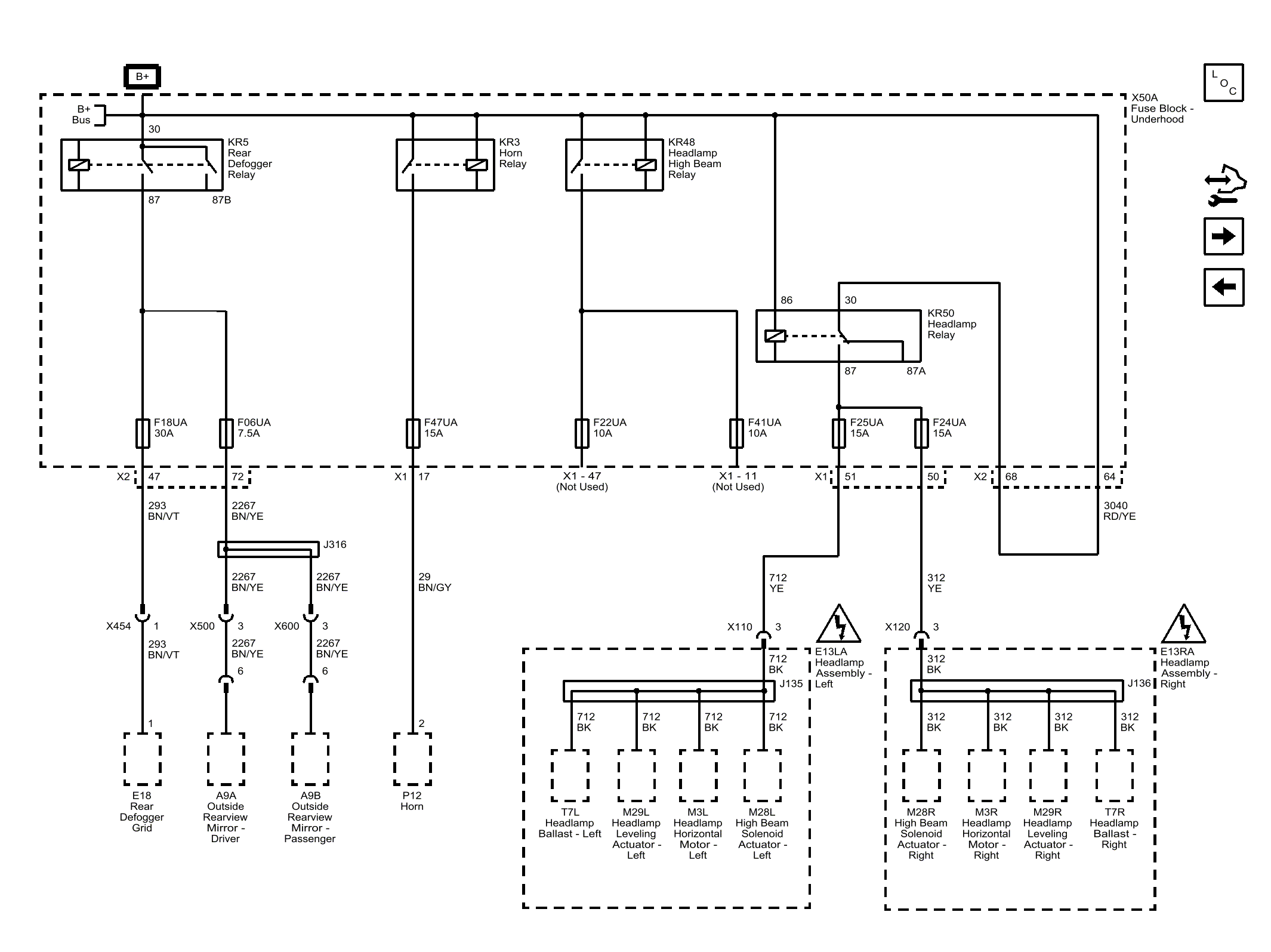

F06UA, F18UA, F22UA, F24UA, F25UA, F41UA and F47UA Fuses

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
GM4890372Courtesy of GENERAL MOTORS COMPANY
