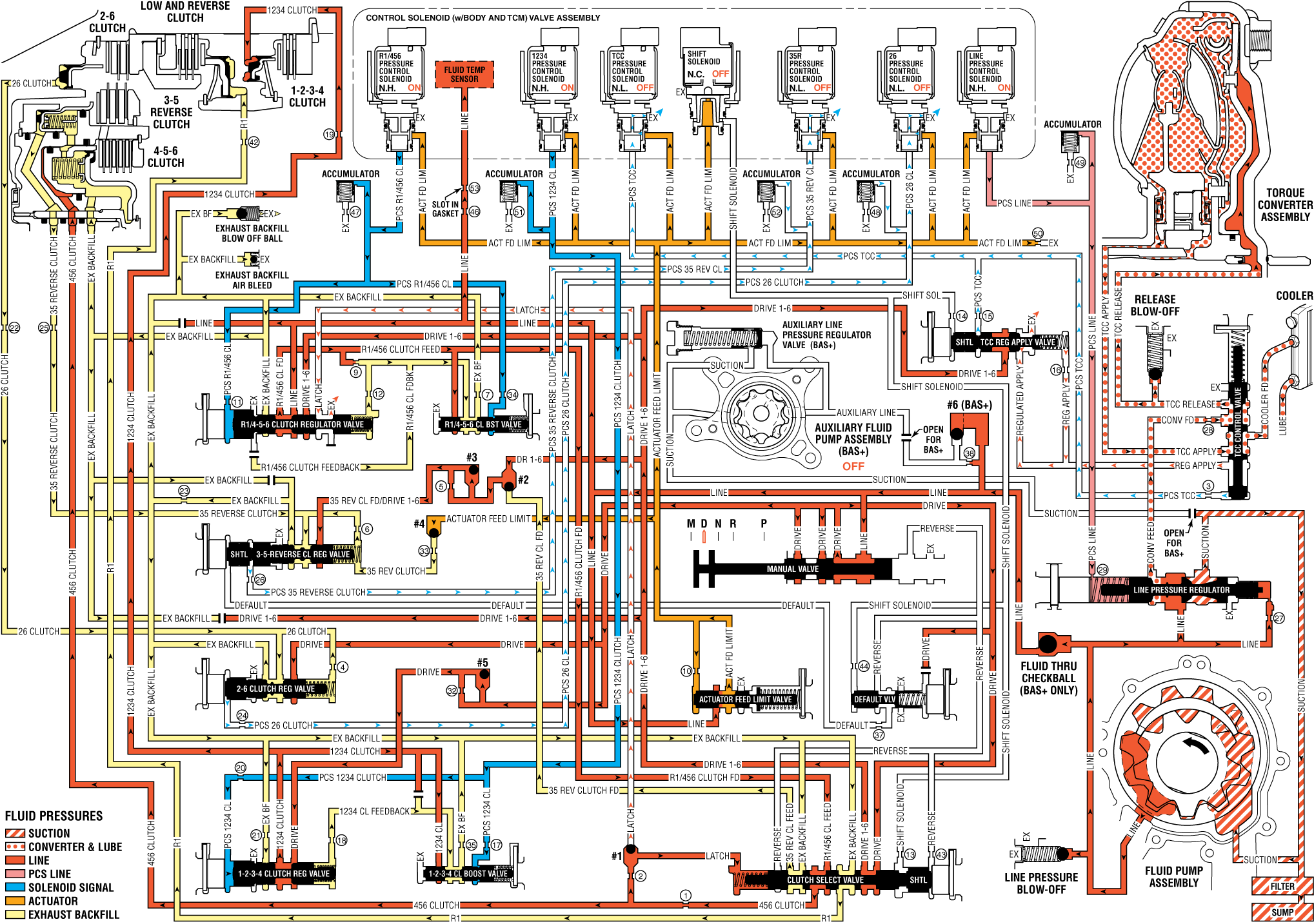

Drive Range, Fourth Gear Default - Gen 2/Hybrid - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
