Rear Seat Back Cushion Removal and Installation (40 Percent Seat)

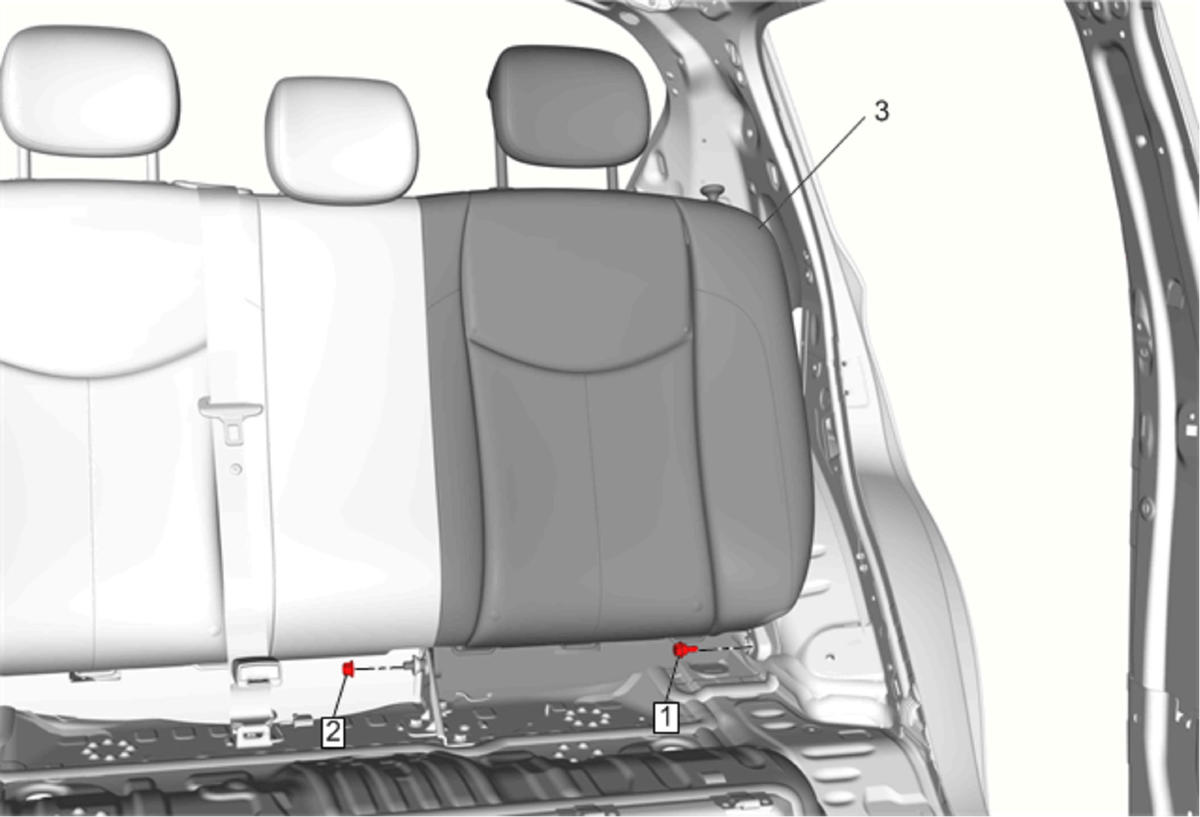

Fig 1: Rear Seat Back Cushion (40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Seat Cushion Removal and Installation (40 Percent Seat)
1	Rear Seat Back Cushion Bolt CAUTION: Refer to Fastener Caution . Tighten  24 N.m (18 lb ft)
2	Rear Seat Back Cushion Nut Tighten  24 N.m (18 lb ft)
3	Rear Seat Back Cushion Procedure  Transfer components as necessary.
