Sunshade Support Replacement

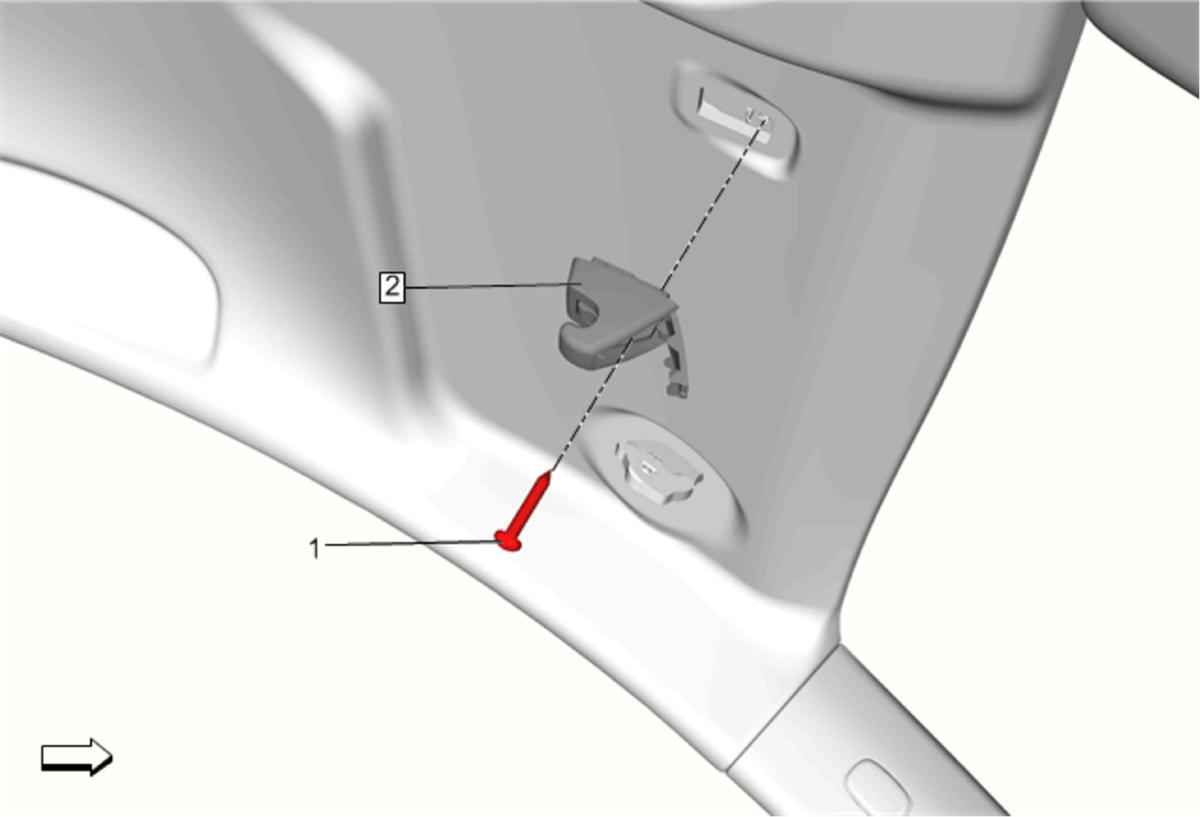

Fig 1: Sunshade Support
GM4053596Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Sunshade Support Screw
CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)
2 Sunshade Support
