Front Floor Console Front Cover Replacement

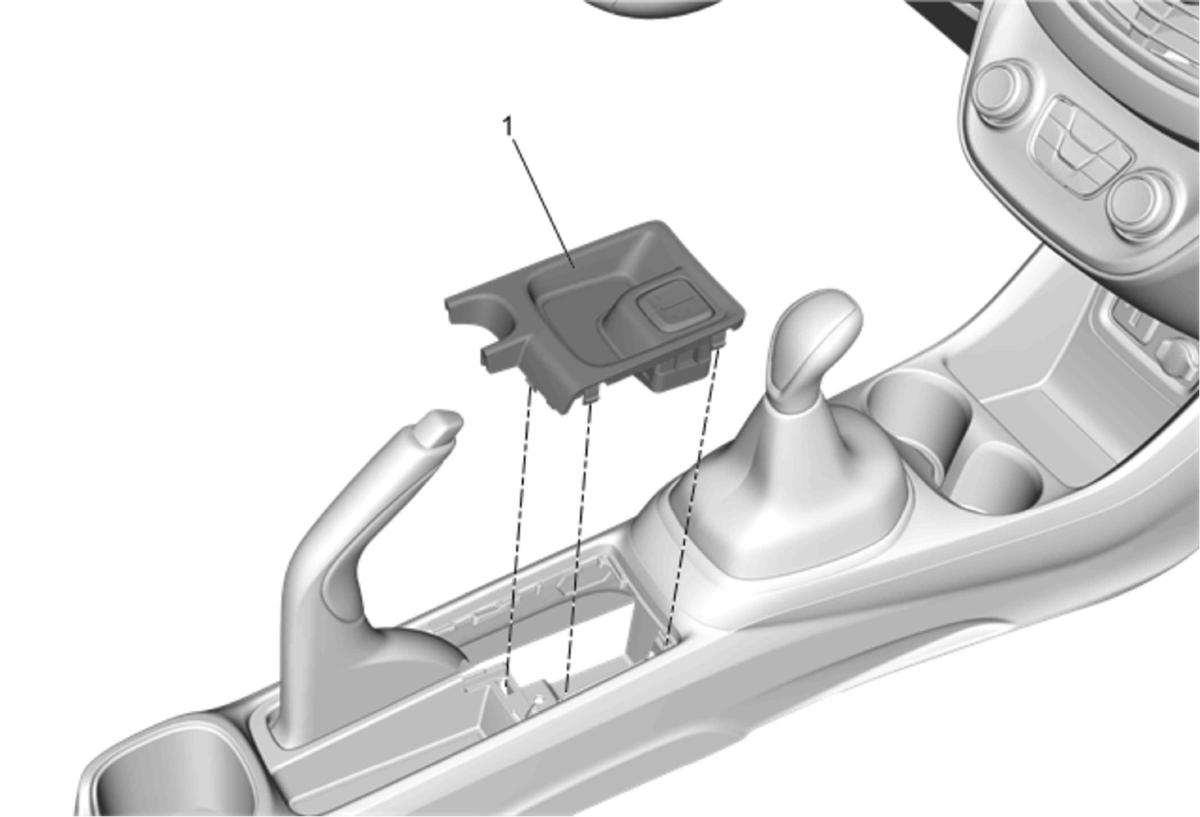

Fig 1: Front Floor Console Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Front Floor Console Front Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. Disconnect the electrical connectors. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.

Callout

Component Name

Preliminary Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Front Floor Console Front Cover

Procedure

NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.
