Stabilizer Shaft Link Replacement

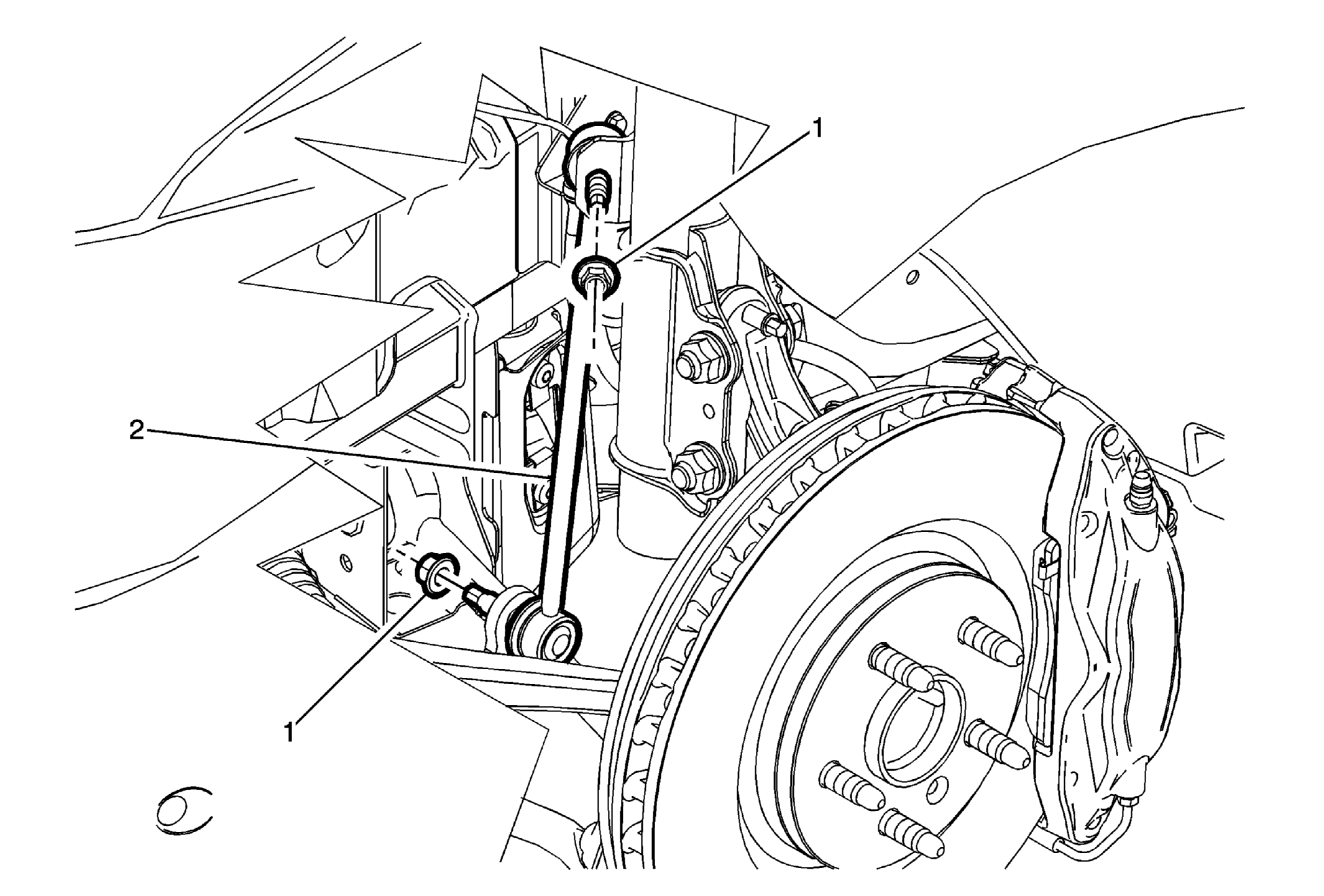

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Front Stabilizer Shaft Link Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Remove and DISCARD the nuts. Tighten 48 N.m (35 lb ft) |
| 2 | Front Stabilizer Shaft Link |
