Heater Outlet Hose Replacement (LFV)

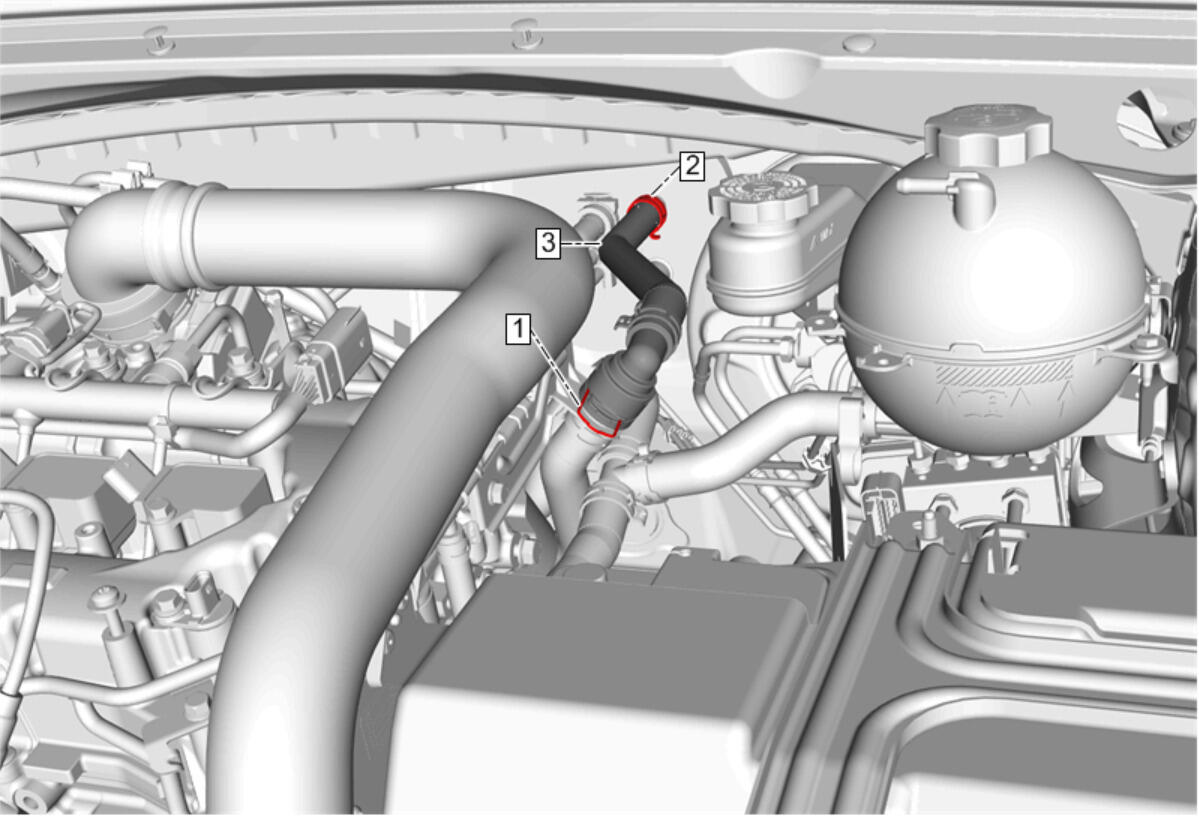

Fig 1: Heater Outlet Hose (LFV)
GM4210293Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
1 Heater Outlet Hose Retainer
2 Heater Outlet Hose Clamp
Procedure
Disengage the tension on the heater outlet hose clamp using the BO-38185  hose clamp pliers.
Special Tool
BO-38185  hose clamp pliers
3 Heater Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
  2. Start the engine and check for coolant leaks.
