Air Conditioning Compressor Bracket Replacement (LKN)

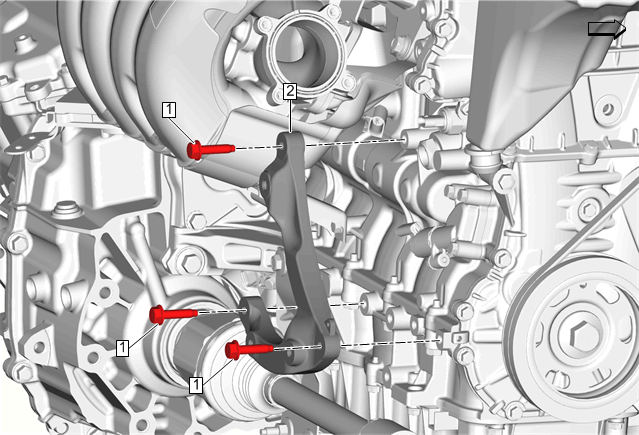

Fig 1: Air Conditioning Compressor Bracket (LKN)
GM4320702Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Conditioning and Drive Motor Battery Cooling Compressor Replacement (LKN)
1 Air Conditioning Compressor Bracket Bolt [3x]
CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
