Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LKN)

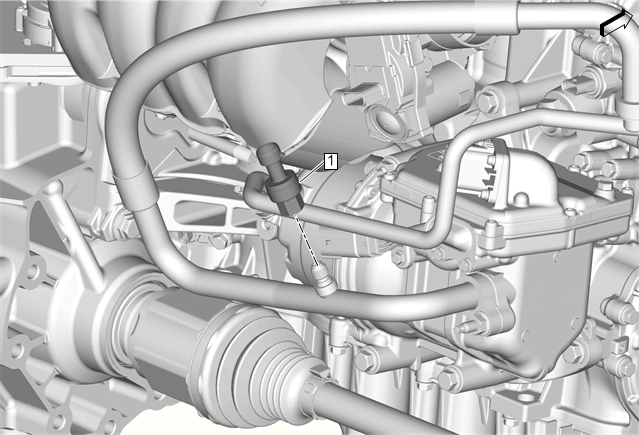

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor (LKN)
GM4322531Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disconnect all electrical connectors.
1 Air Conditioning Refrigerant Pressure Sensor
CAUTION: Refer to Component Fastener Tightening Caution .

Tighten
7 N.m (62 lb in)
