Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LFV)

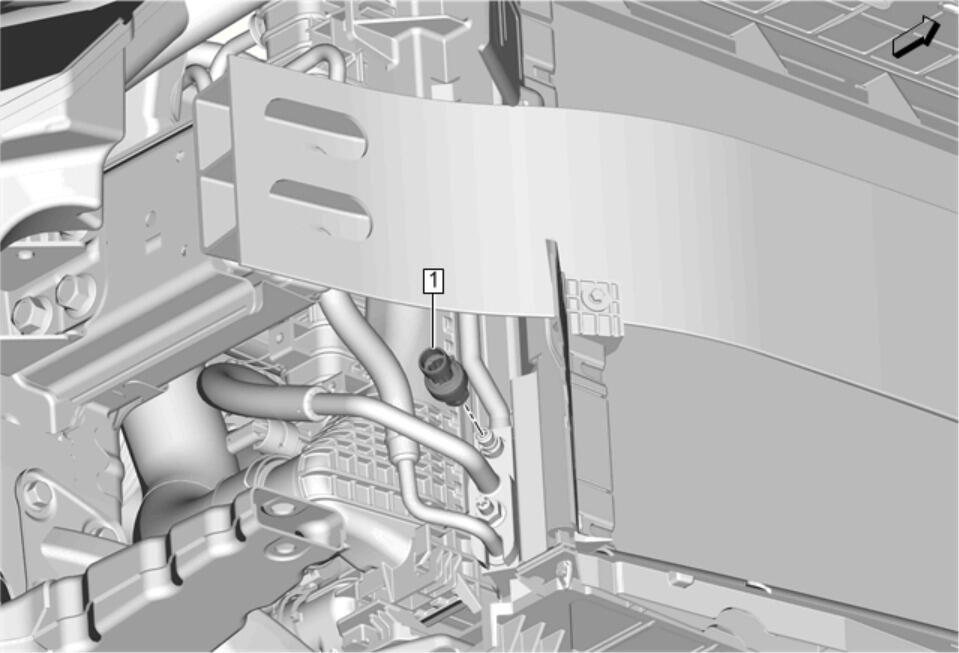

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor (LFV)
GM4225199Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Underbody Front Air Deflector Replacement
  2. Disconnect all electrical connectors.
1 Air Conditioning Refrigerant Pressure Sensor
CAUTION: Refer to Component Fastener Tightening Caution .

Tighten
7 N.m (62 lb in)
