Section 7 (Engine Mechanical - 1.8L (LKN))
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>
Engine Oil Pressure Control Solenoid Valve
Engine Oil Pressure Control Solenoid Valve
WARNING:
This page is about a different variant/trim than selected.

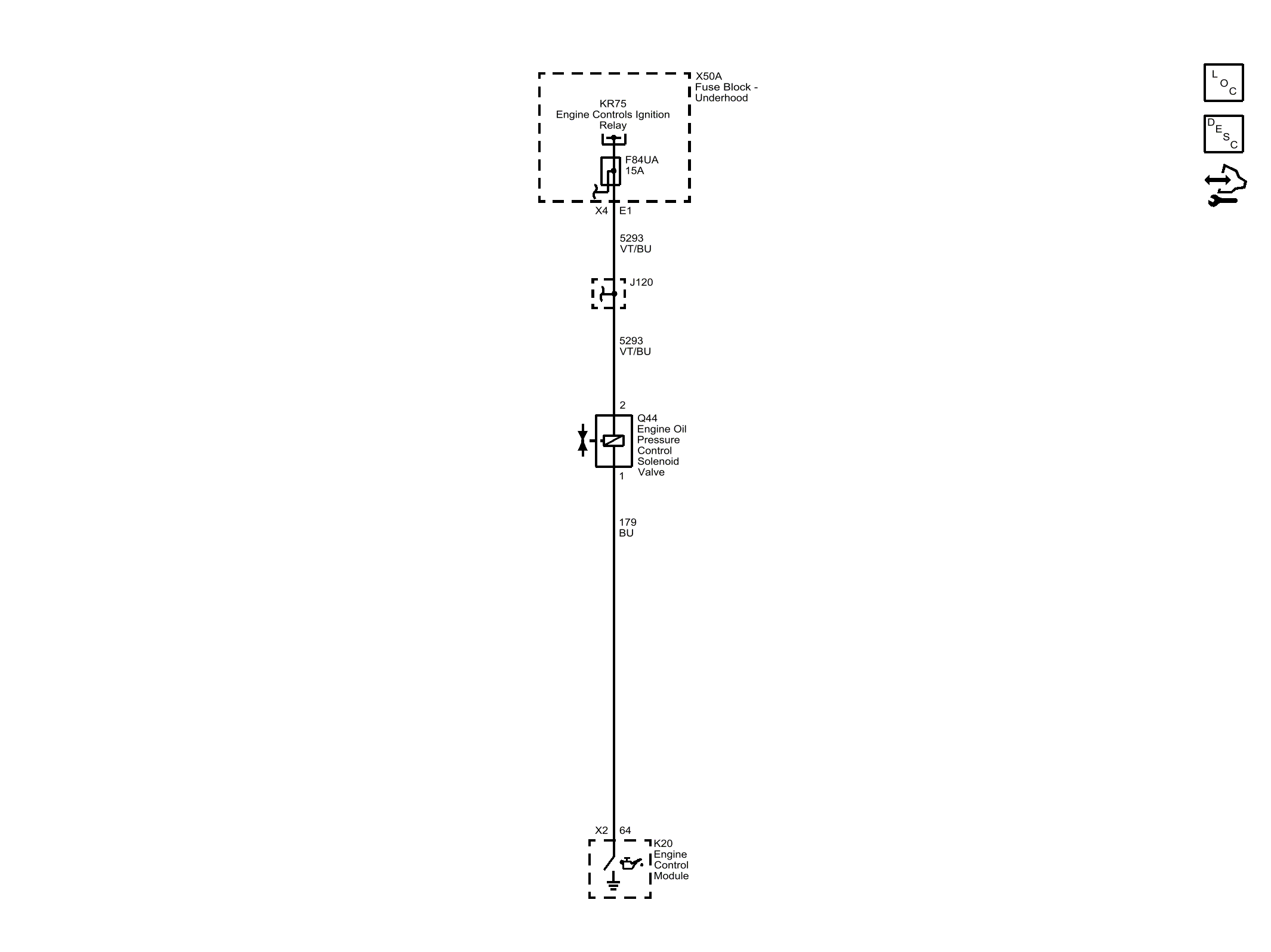

Fig 1: Engine Oil Pressure Control Solenoid Valve
Courtesy of GENERAL MOTORS COMPANY
