Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Oil Pump Suction Pipe Seal (5) - Install

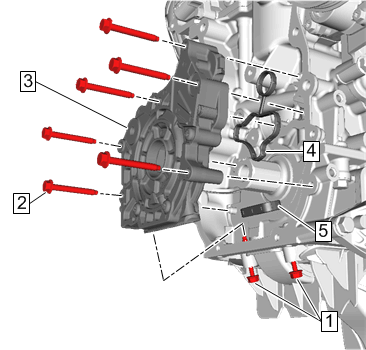

    Fig 1: Oil Pump Bolt
    GM4322082Courtesy of GENERAL MOTORS COMPANY
    NOTE: Install a NEW seal.
  2. Oil Pump Seal (4) - Install
    NOTE: Install a NEW seal.
  3. Oil Pump (3) - Install
  4. Oil Pump Suction Pipe Bolt (1) - [2x]
  5. Oil Pump Bolt (2) - Loosely install [6x]
  6. Oil Pump Bolt (2) - Tighten [6x] 10 N.m (89 lb in)
    CAUTION: Refer to Fastener Caution .
  7. Oil Pump Suction Pipe Bolt (1) - Tighten [2x] 10 N.m (89 lb in)
  8. Timing Chain Guide - Left Side - Install Timing Chain Guide Replacement - Left Side
  9. Timing Chain Guide - Right Side - Install Timing Chain Guide Replacement - Right Side
  10. Crankshaft Sprocket (1) - Install Crankshaft Sprocket Replacement
    Fig 2: Crankshaft Sprocket
    GM4298071Courtesy of GENERAL MOTORS COMPANY
  11. Oil Pan - Install Oil Pan Replacement
