Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Hydraulic Valve Lash Adjuster Arm Replacement  - Remove
  2. Hydraulic Valve Lash Adjuster (1) - Remove (16x)

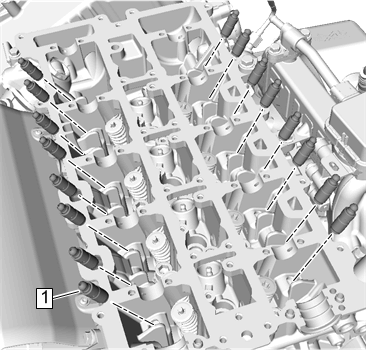

    Fig 1: Hydraulic Valve Lash Adjusters
    GM4299280Courtesy of GENERAL MOTORS COMPANY
    NOTE: Mark the location of the lash adjusters.
