Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Intake Camshaft Replacement  - Remove
  2. Exhaust Camshaft Replacement  - Remove
  3. Remove the 16 hydraulic valve lash adjuster arms (1).

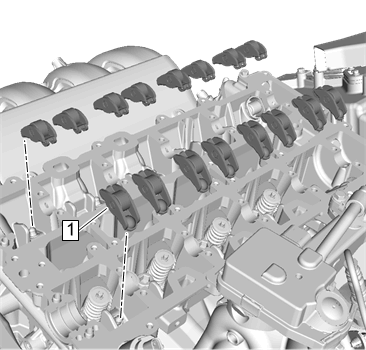

    Fig 1: Hydraulic Valve Lash Adjuster Arms
    GM4299084Courtesy of GENERAL MOTORS COMPANY
    NOTE: Mark the position and orientation of the valve lash adjuster arms to ensure proper installation.
