Engine Mount Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

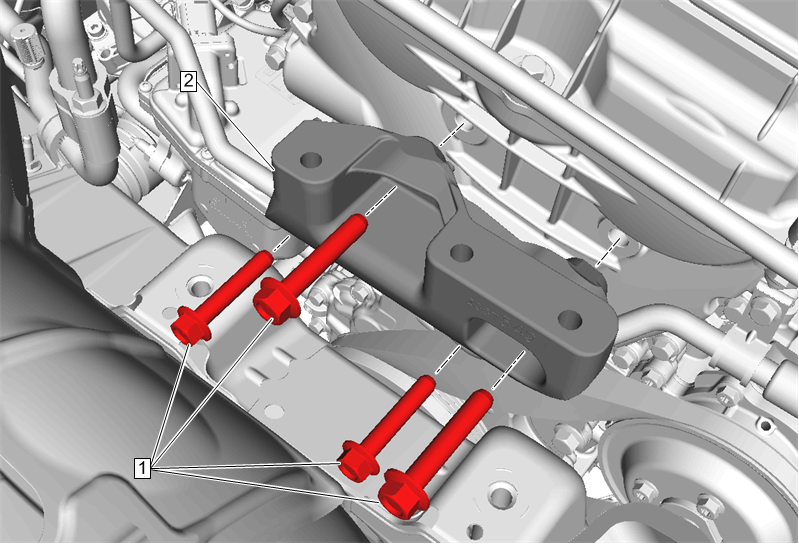

Fig 1: Engine Mount Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the air conditioning compressor and condenser hose ONLY at the compressor and engine front cover, then reposition as needed. Refer to Air Conditioning Compressor and Condenser Hose Replacement (LKN) Engine Mount Replacement
1	Engine Mount Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. Procedure Tighten First Pass: 58 N.m (43 lb ft) Final Pass: an additional 60-75 degrees, using EN-45059 Angle Meter NOTE: Install NEW bolts. Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
2	Engine Mount Bracket

Callout

Component Name

Preliminary Procedures

Disconnect the air conditioning compressor and condenser hose ONLY at the compressor and engine front cover, then reposition as needed. Refer to Air Conditioning Compressor and Condenser Hose Replacement (LKN)
Engine Mount Replacement

Engine Mount Bracket Bolt [4x]

CAUTION: Refer to Fastener Caution .

CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Procedure

Tighten

First Pass: 58 N.m (43 lb ft)
Final Pass: an additional 60-75 degrees, using EN-45059 Angle Meter

NOTE: Install NEW bolts.

Special Tools
EN-45059 Angle Meter
Equivalent regional tools: Special Tools

Engine Mount Bracket
