Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Engine Front Cover Replacement - Upper  - Remove
  2. Crankshaft Balancer Absorber Replacement  - Remove
  3. Engine Front Cover Bolt (1) - Remove

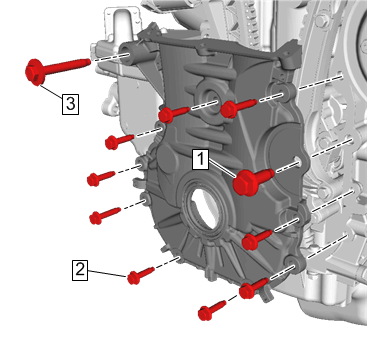

    Fig 1: Engine Front Cover Bolt
    GM4296143Courtesy of GENERAL MOTORS COMPANY
  4. Engine Front Cover Bolt (2) - Remove [9x]
  5. Engine Front Cover Bolt (3) - Remove
  6. Install 2 engine front lower cover bolts (2, 3) at the locations shown, to loosen the engine front lower cover (1).
    Fig 2: Front Lower Cover Bolts
    GM2966501Courtesy of GENERAL MOTORS COMPANY
  7. Engine Front Cover (1) - Remove
    Fig 3: Lower Engine Front Cover
    GM2966471Courtesy of GENERAL MOTORS COMPANY
  8. If reinstalling, clean and inspect the engine front cover.
