Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Camshaft Timing Chain Replacement  - Remove
  2. Crankshaft Sprocket (1) - Remove

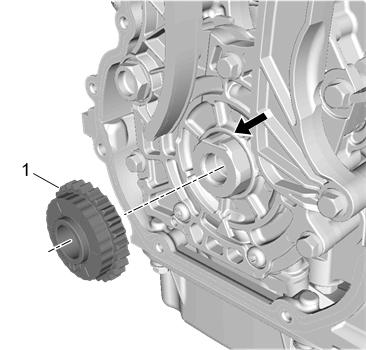

    Fig 1: Crankshaft Sprocket
    GM4298071Courtesy of GENERAL MOTORS COMPANY
