Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Crankshaft Balancer (2) - Install
    Fig 1: Crankshaft Balancer Bolt
    GM4259355Courtesy of GENERAL MOTORS COMPANY
  2. Crankshaft Balancer Bolt (1) - Loosely install
  3. Tighten the crankshaft balancer bolt (2) while holding the crankshaft balancer (3) with the EN-49979  mount retainer to 250 N.m (185 lb ft) plus 45 degrees.

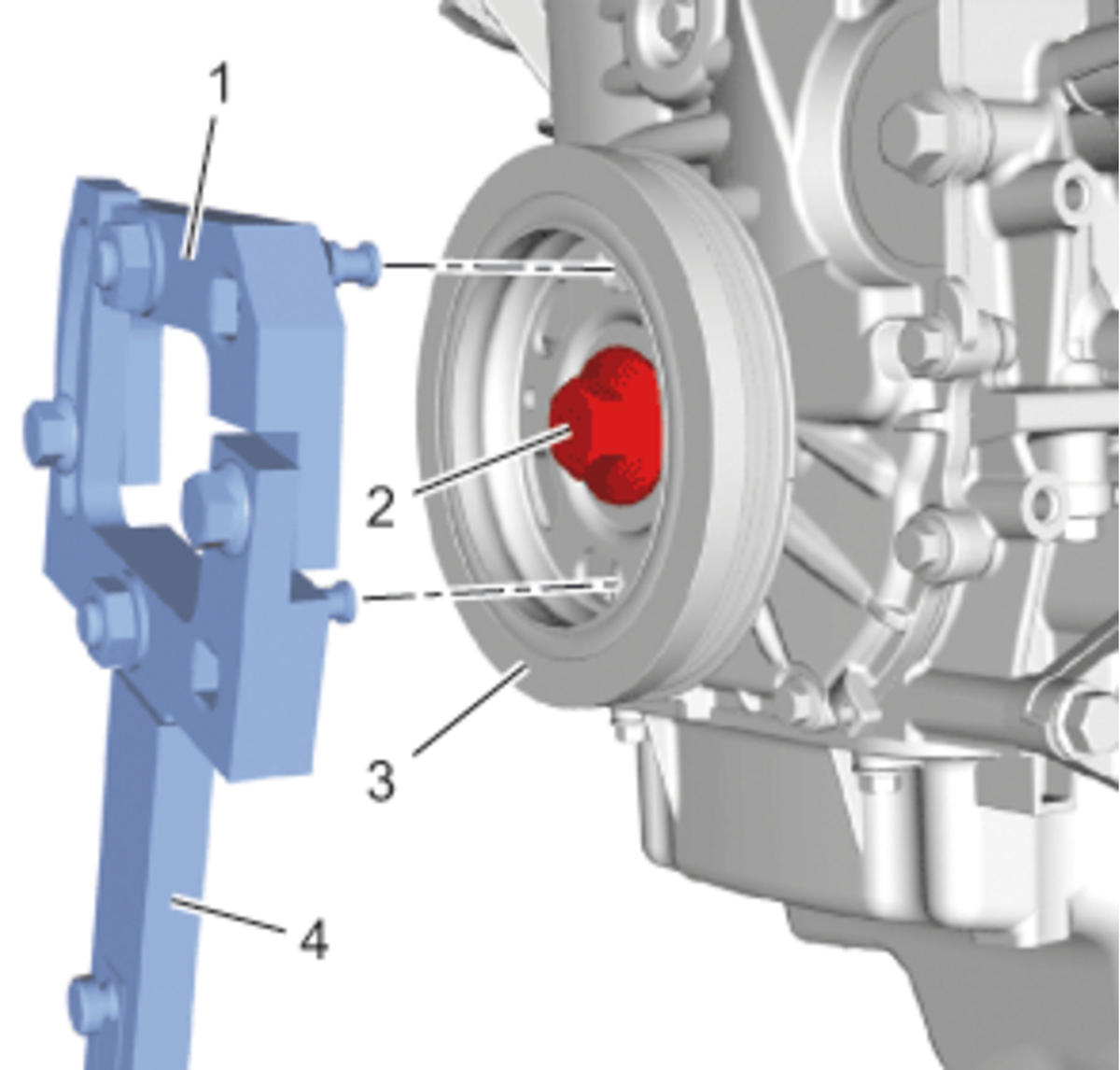

    Fig 2: Crankshaft Balancer Mount Retainer
    GM4259354Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
    NOTE: A second technician is required.
  4. Remove the EN-49979  mount retainer, breaker bar and extension from the crankshaft balancer.
  5. Water Pump Belt Replacement  - Install
  6. Front Wheelhouse Liner Replacement - Install
