Fuel Injection Pump Installation

WARNING: This page is about a different variant/trim than selected.

Check the intake camshaft position.

Fig 1: Checking Intake Camshaft Position
Courtesy of GENERAL MOTORS COMPANY
Insert a plastic ruler (2) until it stops against the cam (1).
Draw a line (3) at the plastic ruler with a pen.
Rotate the camshaft (1) at the crankshaft until the lowest point of the plastic ruler (2) is reached.

Fig 2: Lowest Point Of Plastic Ruler
Courtesy of GENERAL MOTORS COMPANY

NOTE: Second technician is required.
Fuel Injection Pump Shaft Lifter Roller (2) - Install

Fig 3: Valve Lifter Follower
Courtesy of GENERAL MOTORS COMPANY

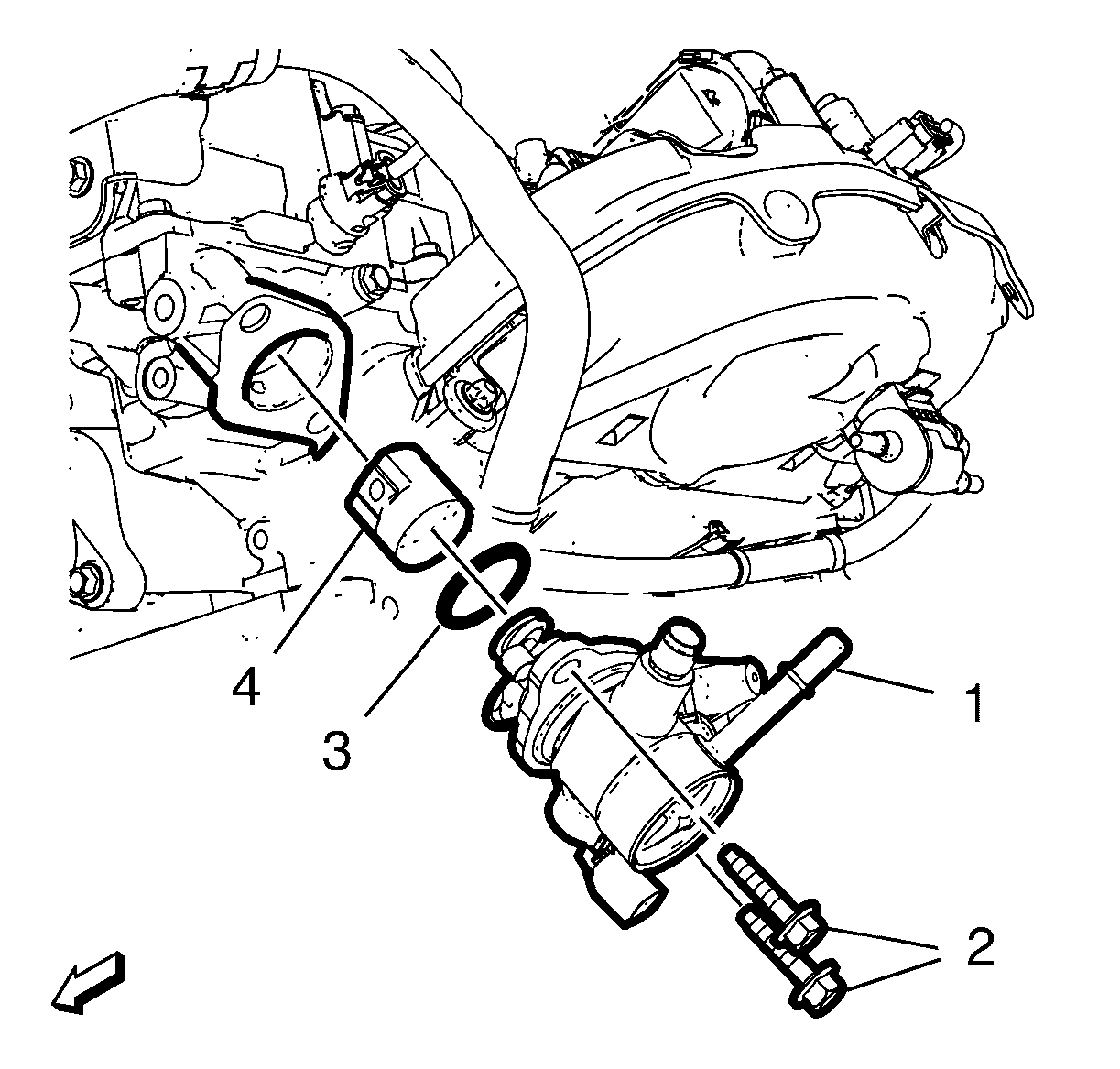

Fuel Injection Pump Gasket (3) - Install a NEW gasket.
Fuel Injection Pump (1) - Install
Install the 2 fuel injection pump bolts (3) alternating in steps of turn.
CAUTION: Refer to Fastener Caution .
Fuel Injection Pump Bolt (2) - Tighten 11 N.m (97 lb in).
