Exhaust Camshaft Removal

WARNING: This page is about a different variant/trim than selected.
  1. Mark camshaft bearing caps prior removal.
    Fig 1: Exhaust Camshaft Bearing Cap Bolts
    GM4248394Courtesy of GENERAL MOTORS COMPANY
  2. Loosen the 12 exhaust camshaft bearing cap bolts (1), working from outside to inside in a spiral in steps of 1/2 up to 1 turn.
  3. Camshaft Bearing Cap Bolt (1) - Remove [12x]

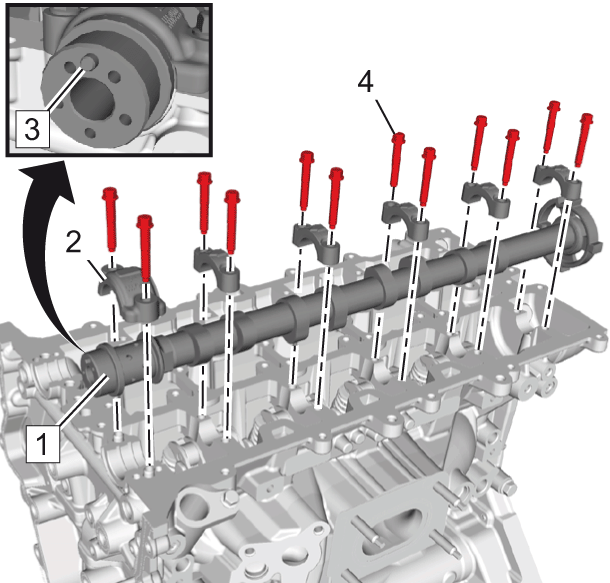

    Fig 2: Exhaust Camshaft
    GM4248395Courtesy of GENERAL MOTORS COMPANY
  4. Camshaft Bearing Cap (2) - Remove [6x]
  5. Exhaust Camshaft (3) - Remove
