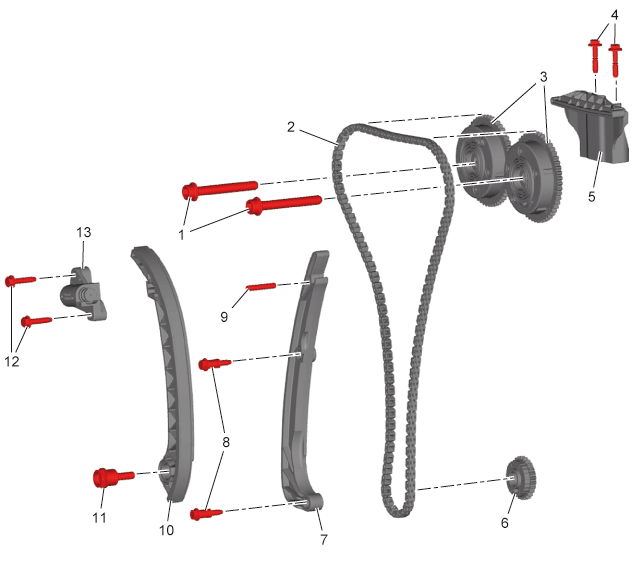

Timing Chain Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Sprocket Bolt |
| 2 | Timing Chain |
| 3 | Camshaft Position Actuator Adjuster |
| 4 | Upper Timing Chain Guide Bolt |
| 5 | Upper Timing Chain Guide |
| 6 | Crankshaft Sprocket |
| 7 | Timing Chain Guide |
| 8 | Timing Chain Guide Bolt |
| 9 | Timing Chain Tensioner Shoe Bushing |
| 10 | Timing Chain Tensioner Shoe |
| 11 | Timing Chain Tensioner Shoe Bolt |
| 12 | Timing Chain Tensioner Bolt |
| 13 | Timing Chain Tensioner |
