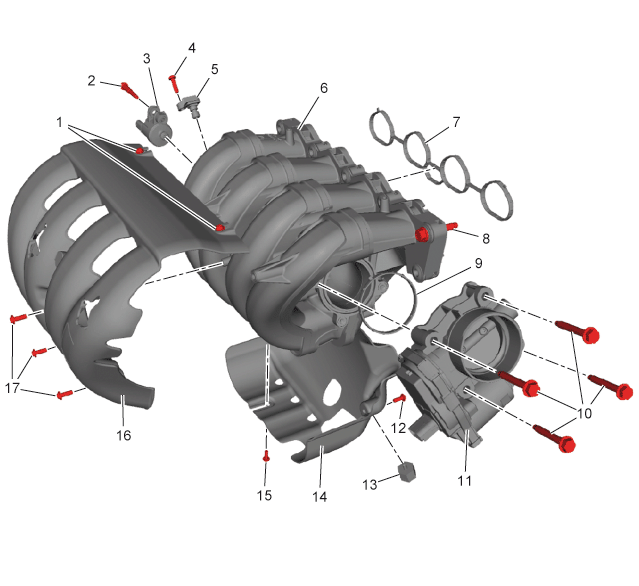

Intake Manifold Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Front Cover Bolt |
| 2 | Evaporative Emission Canister Purge Solenoid Valve Bolt |
| 3 | Evaporative Emission Canister Purge Solenoid Valve |
| 4 | Manifold Absolute Pressure Sensor Bolt |
| 5 | Manifold Absolute Pressure Sensor |
| 6 | Intake Manifold |
| 7 | Intake Manifold Gasket |
| 8 | Intake Manifold Bolt |
| 9 | Throttle Body Gasket |
| 10 | Throttle Body Assembly Bolt |
| 11 | Throttle Body Assembly |
| 12 | Intake Manifold Lower Cover Bolt |
| 13 | Intake Manifold Mount |
| 14 | Intake Manifold Lower Cover |
| 15 | Intake Manifold Lower Cover Bolt |
| 16 | Intake Manifold Front Cover |
| 17 | Intake Manifold Front Cover Bolt |
