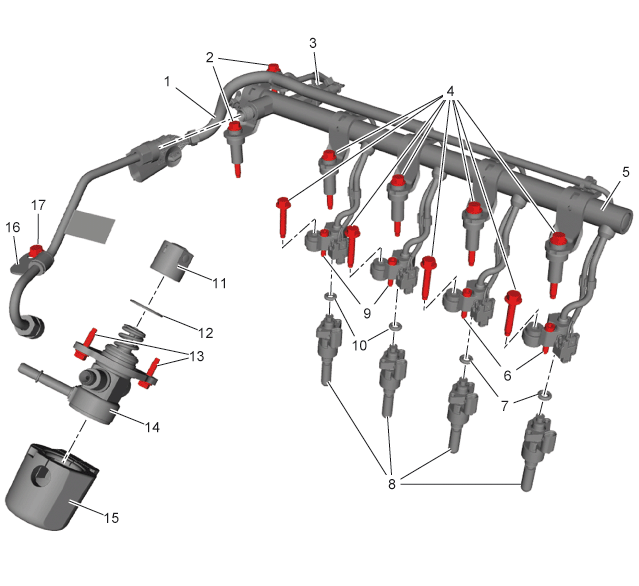

Fuel Injection Fuel Rail Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Fuel Injection Fuel Rail Wiring Harness |
| 2 | Fuel Injection Fuel Rail Bolt |
| 3 | Fuel Injection Fuel Rail Fuel Pressure Sensor |
| 4 | Fuel Injection Fuel Rail Bolt |
| 5 | Fuel Injection Fuel Rail |
| 6 | Fuel Injector Bolt |
| 7 | Fuel Injector Seal Ring |
| 8 | Fuel Injector |
| 9 | Fuel Injector Bolt |
| 10 | Fuel Injector Seal Ring |
| 11 | Fuel Injection Pump Shaft Lifter Roller |
| 12 | Fuel Injection Pump Seal Ring |
| 13 | Fuel Injection Pump Bolt |
| 14 | Fuel Injection Pump |
| 15 | Fuel Injection Pump Insulator |
| 16 | Fuel Injection Fuel Feed Pipe |
| 17 | Fuel Injection Fuel Feed Pipe Bracket Bolt |
