Exhaust Gas Recirculation Components
WARNING: This page is about a different variant/trim than selected.

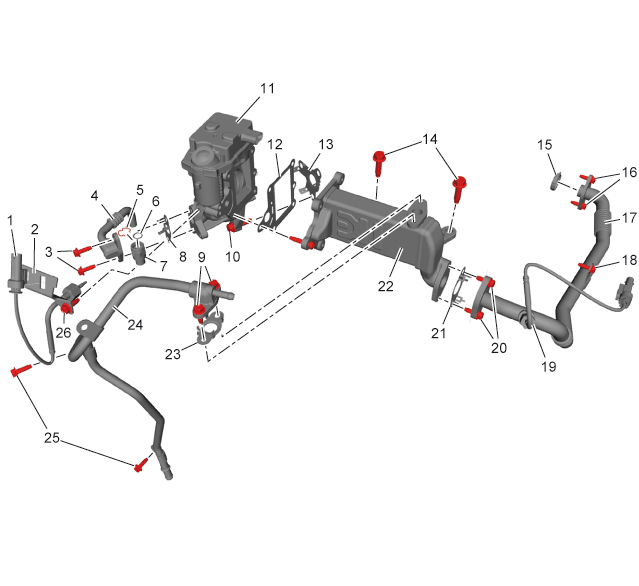

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Temperature Sensor - Position 1 |
| 2 | Exhaust Gas Recirculation Temperature Sensor Bracket |
| 3 | Exhaust Gas Recirculation Cooler Inlet Pipe Bolt |
| 4 | Exhaust Gas Recirculation Cooler Inlet Pipe |
| 5 | Exhaust Gas Recirculation Cooler Inlet Pipe Fitting Clamp |
| 6 | Exhaust Gas Recirculation Cooler Inlet Pipe Seal |
| 7 | Exhaust Gas Recirculation Cooler Inlet Pipe Fitting |
| 8 | Exhaust Gas Recirculation Cooler Inlet Pipe Gasket |
| 9 | Exhaust Gas Recirculation Cooler Outlet Pipe Bolt |
| 10 | Exhaust Gas Recirculation Valve Bolt |
| 11 | Exhaust Gas Recirculation Valve |
| 12 | Exhaust Gas Recirculation Valve Gasket |
| 13 | Exhaust Gas Recirculation Valve Inlet Gasket |
| 14 | Exhaust Gas Recirculation Cooler Bolt |
| 15 | Exhaust Gas Recirculation Pipe Gasket |
| 16 | Exhaust Gas Recirculation Pipe Bolt |
| 17 | Exhaust Gas Recirculation Pipe |
| 18 | Exhaust Gas Recirculation Pipe Bolt |
| 19 | Exhaust Gas Recirculation Temperature Sensor - Position 2 |
| 20 | Exhaust Gas Recirculation Pipe Bolt |
| 21 | Exhaust Gas Recirculation Pipe Gasket |
| 22 | Exhaust Gas Recirculation Valve Cooler |
| 23 | Exhaust Gas Recirculation Cooler Outlet Pipe Gasket |
| 24 | Exhaust Gas Recirculation Cooler Outlet Pipe |
| 25 | Exhaust Gas Recirculation Cooler Outlet Pipe Bolt |
