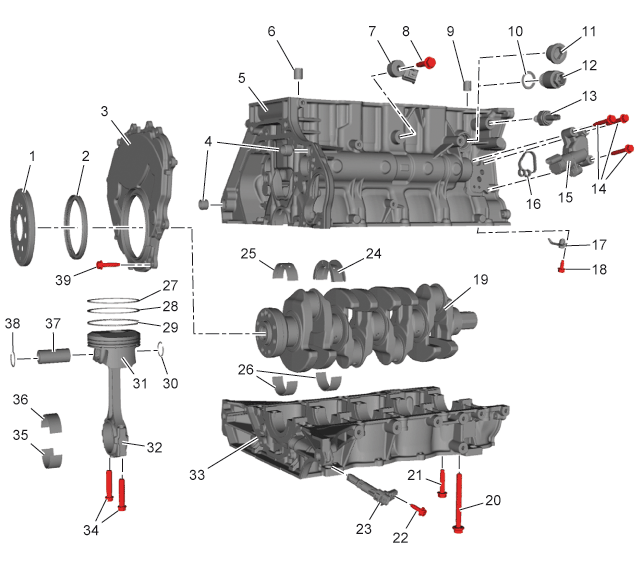

Engine Block Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Crankshaft Position Sensor Reluctor Ring |
| 2 | Crankshaft Rear Oil Seal |
| 3 | Crankshaft Rear Oil Seal Housing |
| 4 | Transmission Guide Sleeve |
| 5 | Engine Block |
| 6 | Cylinder Guide Sleeve |
| 7 | Knock Sensor |
| 8 | Knock Sensor Bolt |
| 9 | Cylinder Guide Sleeve |
| 10 | [If Equipped] Engine Block Heater Gasket |
| 11 | [If Equipped] Engine Coolant Heater Hole Plug |
| 12 | [If Equipped] Engine Block Heater |
| 13 | Engine Oil Pressure Sensor |
| 14 | Oil Pump Flow Control Valve Bolt |
| 15 | Oil Pump Flow Control Valve |
| 16 | Oil Pump Flow Control Valve Seal |
| 17 | Piston Oil Nozzle |
| 18 | Piston Oil Cooling Nozzle Bolt |
| 19 | Crankshaft |
| 20 | Lower Crankcase Bolt (Long) |
| 21 | Lower Crankcase Bolt (Short) |
| 22 | Crankshaft Position Sensor Bolt |
| 23 | Crankshaft Position Sensor |
| 24 | Crankshaft Thrust Upper Bearing |
| 25 | Crankshaft Upper Bearing |
| 26 | Crankshaft Lower Bearing |
| 27 | Piston Compression Upper Ring |
| 28 | Piston Compression Lower Ring |
| 29 | Piston Oil Ring (with 2 Oil Ring Spacers) |
| 30 | Piston Pin Retainer |
| 31 | Piston |
| 32 | Connecting Rod |
| 33 | Lower Crankcase |
| 34 | Connecting Rod Bolt |
| 35 | Connecting Rod Lower Bearing |
| 36 | Connecting Rod Upper Bearing |
| 37 | Piston Pin |
| 38 | Piston Pin Retainer |
| 39 | Crankshaft Rear Oil Seal Housing Bolt |
