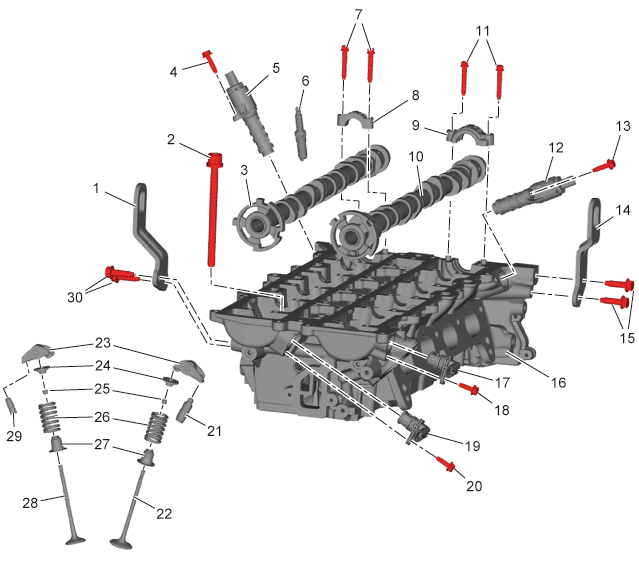

Cylinder Head Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Engine Lift Rear Bracket |
| 2 | Cylinder Head Bolt |
| 3 | Exhaust Camshaft |
| 4 | Camshaft Position Actuator Solenoid Valve Bolt |
| 5 | Exhaust Camshaft Position Actuator Solenoid Valve |
| 6 | Spark Plug |
| 7 | Camshaft Bearing Cap Bolt |
| 8 | Camshaft Bearing Cap |
| 9 | Camshaft Bearing Front Cap |
| 10 | Intake Camshaft |
| 11 | Camshaft Bearing Front Cap Bolt |
| 12 | Intake Camshaft Position Actuator Solenoid Valve |
| 13 | Camshaft Position Actuator Solenoid Valve Bolt |
| 14 | Engine Lift Front Bracket |
| 15 | Engine Lift Front Bracket Bolt |
| 16 | Cylinder Head |
| 17 | Intake Camshaft Position Sensor |
| 18 | Intake Camshaft Position Sensor Bolt |
| 19 | Exhaust Camshaft Position Sensor |
| 20 | Exhaust Camshaft Position Sensor Bolt |
| 21 | Hydraulic Valve Lash Adjuster |
| 22 | Intake Valve |
| 23 | Hydraulic Valve Lash Adjuster Arm |
| 24 | Valve Spring Retainer |
| 25 | Valve Stem Key |
| 26 | Valve Spring |
| 27 | Valve Stem Oil Seal |
| 28 | Exhaust Valve |
| 29 | Hydraulic Valve Lash Adjuster |
| 30 | Engine Lift Rear Bracket Bolt |
