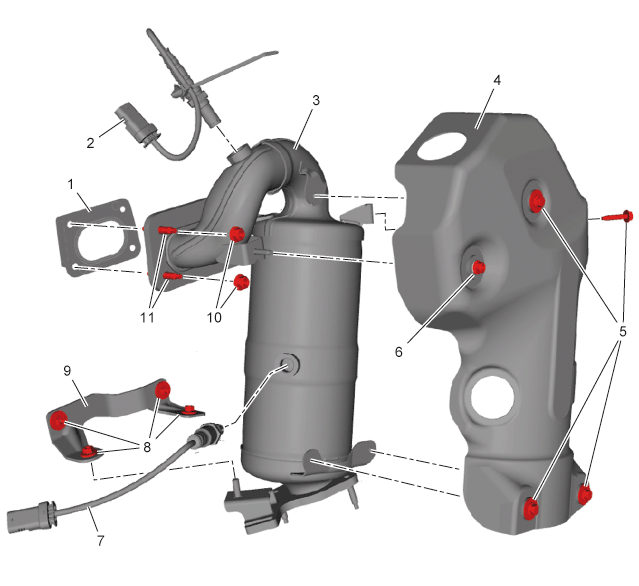

Catalytic Converter Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Catalytic Converter Gasket |
| 2 | Heated Oxygen Sensor - Position 1 |
| 3 | Catalytic Converter |
| 4 | Catalytic Converter Heat Shield |
| 5 | Catalytic Converter Heat Shield Bolt |
| 6 | Catalytic Converter Heat Shield Nut |
| 7 | Heated Oxygen Sensor - Position 2 |
| 8 | Catalytic Converter Brace Nut |
| 9 | Catalytic Converter Brace |
| 10 | Catalytic Converter Nut |
| 11 | Catalytic Converter Stud |
