Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Exhaust Front Pipe - Remove Exhaust Front Pipe Replacement (LKN)
  2. Intake Manifold Brace Bolt (2) - Remove [2x]
    Fig 1: Intake Manifold Brace Bolt
    GM4248348Courtesy of GENERAL MOTORS COMPANY
  3. Intake Manifold Brace (1) - Remove
  4. Electrical Connector (1) - Disconnect

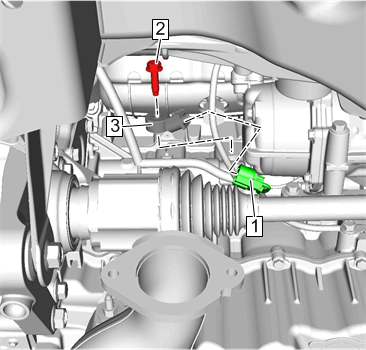

    Fig 2: Knock Sensor
    GM4331848Courtesy of GENERAL MOTORS COMPANY
  5. Knock Sensor Bolt (2) - Remove
  6. Knock Sensor (3) - Remove
