Heated Oxygen Sensor Replacement - Sensor 2

WARNING: This page is about a different variant/trim than selected.

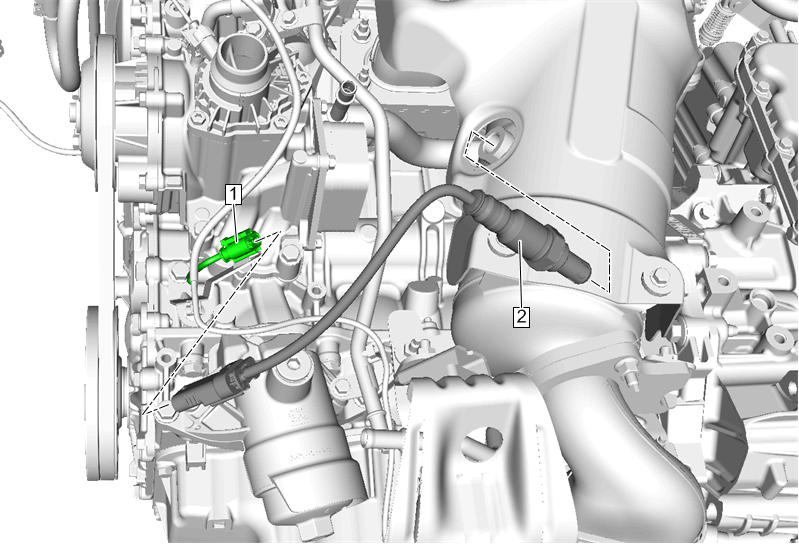

Fig 1: Heated Oxygen Sensor - Sensor 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Electrical Connector
2	Heated Oxygen Sensor CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: The oxygen sensor uses a permanently attached pigtail and connector. Do not remove the pigtail from the oxygen sensor. Damage to or removal of the pigtail connector could affect proper operation of the oxygen sensor. CAUTION: The use of excessive force may damage the threads in the exhaust manifold/pipe. NOTE: The in-line connector and louvered end must be kept clear of grease, dirt or other contaminants. Avoid using cleaning solvents of any type. DO NOT drop or roughly handle the heated oxygen sensor (HO2S). The HO2S may be difficult to remove when the engine temperature is less than 48°C (120°F). A special anti-seize compound is used on the HO2S threads. The compound consists of a liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or service sensors will have the compound applied to the threads. If a sensor is removed and is to be reinstalled, the threads must have an anti-seize compound applied before installation. Tighten 42 N.m (31 lb ft) Special Tools J-39194 Oxygen Sensor Wrench Equivalent regional tools:Special Tools (Diagnostic Tools)Special Tools (Mechanical Tools)
