Fuel Tank Vent Pipe Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Gasoline/Gasoline Vapors Warning
.
WARNING:
Refer to Safety Glasses Warning
. Preliminary Procedure Fuel Tank Replacement |
|

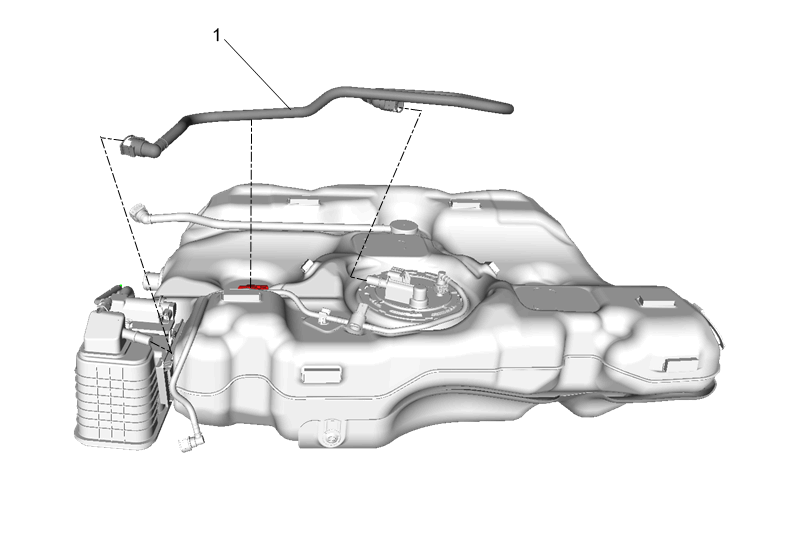

| 1 | Fuel Tank Vent Pipe Procedure Disconnect the fuel tank vent pipe from the fuel tank fuel pump module and EVAP canister and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service |
