Exhaust Gas Recirculation Valve Replacement
WARNING: This page is about a different variant/trim than selected.

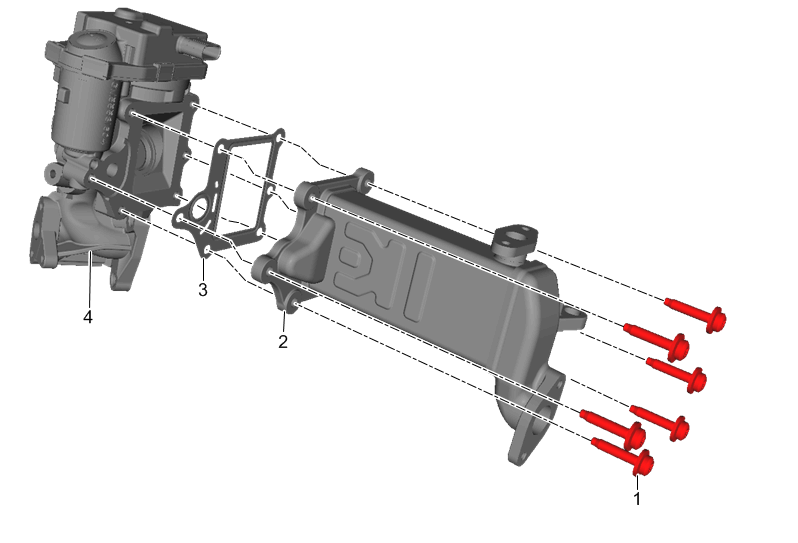

| Callout | Component Name |
|---|---|
| Preliminary Procedure Exhaust Gas Recirculation Cooler Replacement |
|
| 1 | Exhaust Gas Recirculation Cooler Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Gas Recirculation Cooler |
| 3 | Exhaust Gas Recirculation Valve Gasket
NOTE:
The gasket is reusable, inspect the gasket and replace if damaged.
|
| 4 | Exhaust Gas Recirculation Valve |
