Removal Procedure

WARNING: This page is about a different variant/trim than selected.

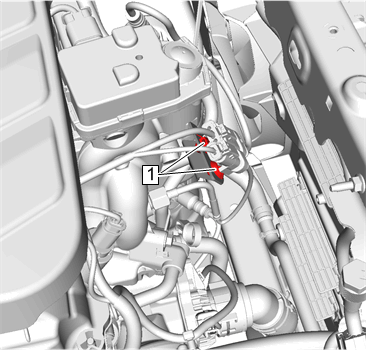

  1. Retainer (1) - Unclip [2x]
    Fig 1: Retainer
    GM4332372Courtesy of GENERAL MOTORS COMPANY

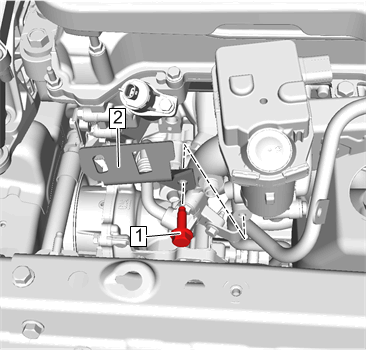

  2. Exhaust Gas Recirculation Cooler Temperature Sensor Bracket Bolt (1) - Remove
    Fig 2: Exhaust Gas Recirculation Cooler Temperature Sensor Bracket Bolt
    GM4332375Courtesy of GENERAL MOTORS COMPANY
  3. Exhaust Gas Recirculation Cooler Temperature Sensor Bracket (2) - Remove
