Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the coolant. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
  2. Retainer (1) - Remove

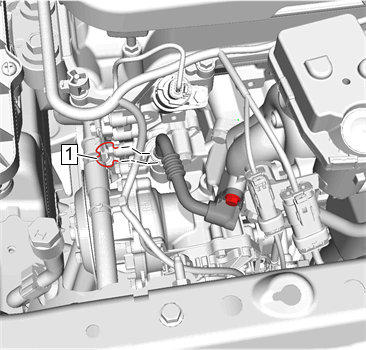

    Fig 1: Retainer
    GM4339425Courtesy of GENERAL MOTORS COMPANY
  3. Exhaust Gas Recirculation Cooler Inlet Pipe Bolt (1) - Remove [2x]

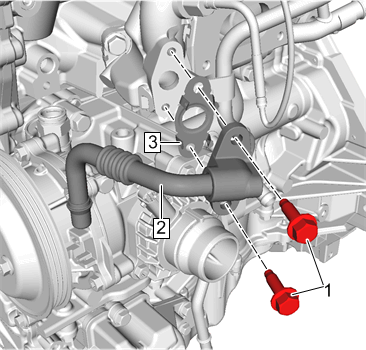

    Fig 2: Exhaust Gas Recirculation Cooler Inlet Pipe Bolt
    GM4339514Courtesy of GENERAL MOTORS COMPANY
  4. Exhaust Gas Recirculation Cooler Inlet Pipe (2) - Remove
  5. Exhaust Gas Recirculation Cooler Inlet Pipe Gasket (3) - Remove
    NOTE: The gasket is reusable, inspect the gasket and replace if damaged.
