Evaporative Emission Canister Purge Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

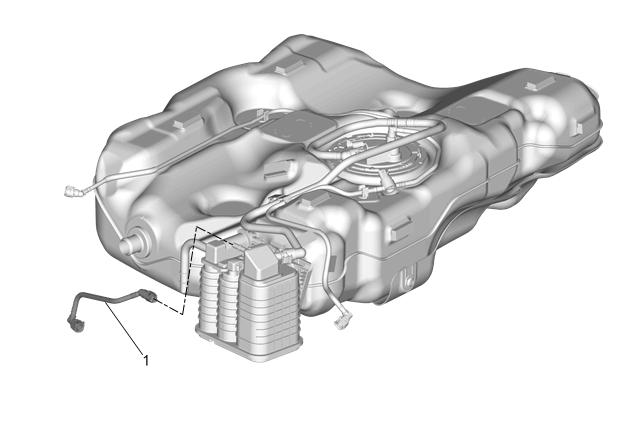

Fig 1: Evaporative Emission Canister Purge Pipe
GM4230165Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Evaporative Emission Canister Purge Pipe
Procedure
Disconnect the quick connect fitting. Refer to Plastic Collar Quick Connect Fitting Service
