Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Evaporative Emission Canister Air Inlet Hose (2) - Connect Plastic Collar Quick Connect Fitting Service

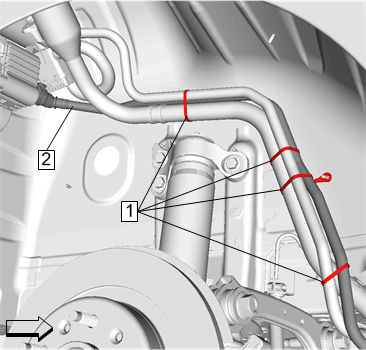

    Fig 1: Tie Strap
    GM4328441Courtesy of GENERAL MOTORS COMPANY
  2. Tie Straps (1) - Install NEW [4x]
  3. Evaporative Emission Canister Air Inlet Hose (1) - Connect Plastic Collar Quick Connect Fitting Service

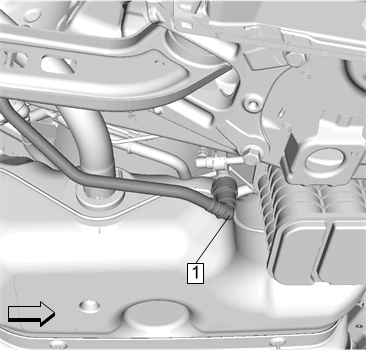

    Fig 2: Evaporative Emission Canister Air Inlet Hose
    GM4328449Courtesy of GENERAL MOTORS COMPANY
  4. Rear Wheelhouse Liner - Install Rear Wheelhouse Liner Replacement
