Crankshaft Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

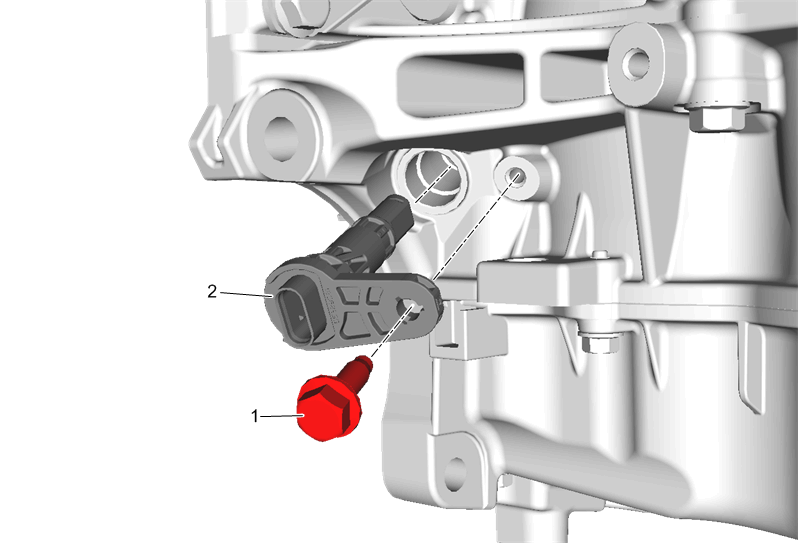

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lifting and Jacking the Vehicle Disconnect the electrical connector.
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Perform the crankshaft position variation learn. Refer to Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor
Procedure
Perform the crankshaft position variation learn. Refer to Crankshaft Position Variation Learn
